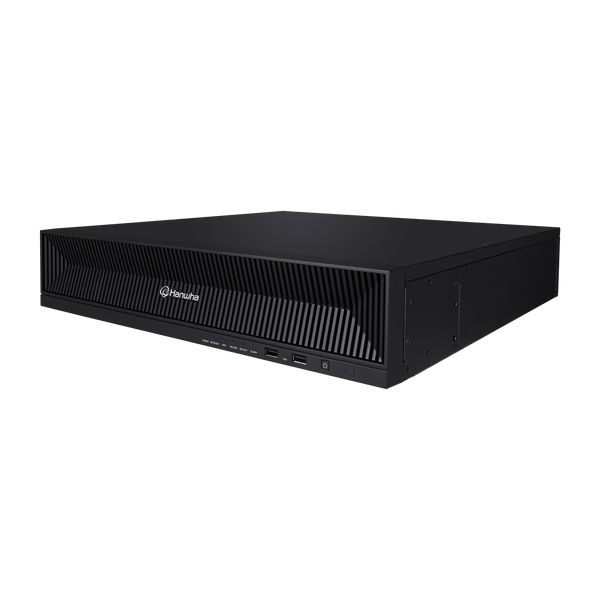

Hanwha PRN-3200B2 32CH 8K 400Mbps H.265 AI NVR

$7,107.00
SKU:
PRN-3200B2
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

  • 8K NVR, up to 32 channels, License-free recording
  • Supports H.265, H.264, & MJPEG CODECs,
  • Up to 8 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6 recording
  • ARB (Automatic Recovery Backup)
  • 400 Mbps recording / up to 64 Mbps playback
  • Dual stream recording, WiseStream technology
  • HDMI/VGA dual display with local 4K display resolution (HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz), max. resolution of 32MP recording/display
  • Add AI search capabilities to select P, X and Q series Hanwha Cameras
  • AI search including Best Shot, Attribute), object detection and classification, License plate detection and search (Wisenet AI cameras only)
  • web UI 2.0 (no plugins required), fisheye dewarping, dynamic Layout and Dynamic Event
  • Easy connection using P2P service (QR code connect) with Wisenet Mobile APP (for Android and IOS) and the free of charge Wisenet Viewer
  • NDAA & FCC Compliant

Specifications

Display

  • Network camera — Inputs: Max. 32CH
  • Resolution: 32MP ~ CIF
  • Protocols: SUNAPI, ONVIF
  • Decoding — Local Display: \[Dual Display\] / HDMI 1: 3840 x 2160 (30Hz) / HDMI 2: 1920x1080 (60Hz)
  • Multi Screen Display: \[Local Monitor\] / \- Dynamic layout, Virtual channel view / \- Clone Mode : Up to 36 Division / \- Expand Mode : HDMI1 up to 36 Div. HDMI2 up to 16 Div. / \[Web\] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
  • Resolution: 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps)

Performance

  • Operating System — Embedded: Linux
  • Record — Compression: H.265, H.264, MJPEG, WiseStream(H.265, H.264)
  • Recording Bandwidth: Distributed mode : Up to 400 Mbps / Normal mode : Up to 150 Mbps / \[RAID mode\] / Normal : Up to 400 Mbps / Degrade/ Rebuild : Up to 320 Mbps
  • Resolution: 32MP ~ CIF
  • Mode: Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
  • Event Trigger: Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
  • Event Action: e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown
  • Search & Play — Playback Bandwidth: RAID Mode : Max. 64Mbps / Non-RAID Mode : Max. 32Mbps
  • User: Max. 4 Users (Local 1, Remote 3)
  • Simultaneous playback: Max. 80CH(Local 32CH, Remote 16CH per user)
  • Fisheye Dewarping: Support (Local 1CH), CMS
  • Mode: Date & Time(Calendar), Event list, Text Search, Smart Search
  • Resolution: CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
  • Playback Control: Fast/Slow Forward / Backward, Move one step Up / Down
  • Storage — Supported HDD: Up to 10TB
  • HDD Slot: SATA 8ea(Max. 80TB, Non-RAID mode)
  • External: iSCSI storage
  • RAID: RAID-5/6(Single, 1 Array)
  • Backup — File backup: BU/Exe/AVI(GUI), JPG/AVI(Network)
  • Function: Multi channel(Up to 16CH) Play, Date-Time/Title display

Network

  • Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
  • DDNS: Hanwha DDNS
  • Transmission Bandwidth: Max. 400Mbps
  • Audio — Input/Output: 32 CH(network)
  • Compression: G.711, G.726, AAC(16/48KHz)
  • Audio Communication: 2-Way
  • Max Remote Users: Search(3), Live Unicast(10), Multicast(20)
  • Security: IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
  • Web viewer — Supported OS: Windows 10, macOS 10.13
  • Supported browser: Google Chrome, Microsoft Edge, Mac Safari
  • Viewer Software: WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS

Function

  • Camera Setup — Register: Auto, Manual
  • Item: IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) / Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),, Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
  • PTZ — Control: Via GUI, Webviewer, SPC-2000
  • Preset: 300 Presets
  • Smart phone — Support Model: iOS, Android
  • Protocol Support: RTP, RTSP, HTTP, CGI(SUNAPI)
  • Control: Live 16CH(Multi-Profile Support), Playback 4CH
  • Max. Remote Users: Search(3), Live Unicast(10)
  • Redundancy — Failover: N+1
  • ARB: Support
  • Easy configuration: P2P(QR code)

Interface

  • Front — Indicator: HDD, Alarm, Power, Record, Backup, Network, RAID
  • Storage: OK
  • Reset: OK
  • HDD Keylock: OK
  • HDMI: 2EA ( Playback/Setup → HDMI1) / HDMI1 : 3840x2160 30Hz / HDMI2 : 1920x1080 60Hz
  • Audio: Out 1EA (3.5mm Audio Jack)
  • Ethernet: RJ-45 3EA (LAN/WAN, 1Gbps)
  • Alarm: In 8EA, Out 4EA
  • USB: 4EA(Front 2 x USB2.0 + Rear 2 x USB 3.0)
  • Power inlet: AC 1EA

System

  • Log — Log List: Max. 100,000 (System Log, Event Log each)
  • System Control: Mouse, Keyboard, Web, Controller (SPC-2000)
  • Language: English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese

Environmental

  • Operating Temperature: 0°C to +40°C(32℉ to 104℉)
  • Operating Humidity: 20% ~ 85% RH

Electrical

  • Power Input: 100 ~ 240 VAC ±10%; 50/60Hz, 2.1A
  • Power Consumption: Max. 205W(With 10TB HDDs 8EA)

Mechanical

  • Color / Material: Black / Metal
  • Dimension: 438.0 x 86.0 x 434.9 mm (17.47 x 3.39 x 17.12 inch)
  • Weight: Approx. 9.1Kg(20.1lb, HDD not included)

Intelligent Analysis

  • AI Search — Object Attribute: Human, Face, Vehicle, Lisence plate
  • LPR: English, Number (Wisenet AI, P/X Camera)

Download the Hanwha PRN-3200B2 datasheet (PDF)
