DESCRIPTION

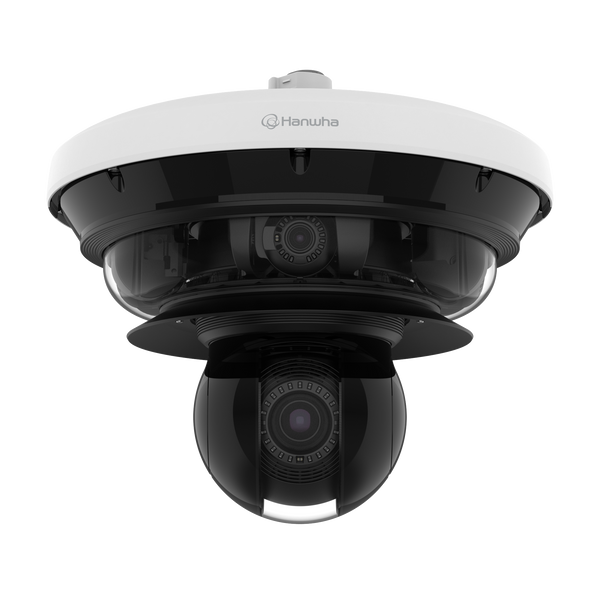

The PNM-C34404RQPZ is an innovative network vandal outdoor Multi-Directional camera that combines AI, IR, 4K lenses with PTRZ, and a 2MP 40x PTZ. This allows for full 360° coverage while being able to zoom in on events using SmartZoom, or manual operator control. Each of the quad-sensors can be remotely adjusted for installation to provide complete lifecycle adjustment of the pan, tilt, rotation, zoom, & focus.
FEATURES
- 120dB WDR
- 4.25~170mm (Optical 40x) lens
- PTZ Auto Tracking, SmartZoom to Preset / IVA Trigger
- 4-Channels @ 4K/8MP with motorized PTRZ for easy installation and remote adjustment of the entire FoV, 3.3~5.7mm (FoV H: 109°~56°, V: 55°~31°)
- 15FPS AI ON, 20FPS AI OFF
- 2MP @ 60FPS PTZ with 40x zoom
- IR viewable [4CH] length 20m (65ft) / [PTZ] WiseIR 200m (656ft)
- H.265, H.264, MJPEG triple codec
- Analytics events based on AI engine: Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear
- WiseNR Ⅱ (using AI engine), WiseStreamⅢ (Based on AI engine)
- I/O Box compatibility
- TPM with FIPS 140-2 level 2
- micro SD card 512GB x2
- IP66, IK10, NEMA4X
- Operating Temperature: -40°C~+50°C(-40°F~+122°F)
- HPoE (injector included)
- Hard-coated dome bubble
- SBP-156HMW (Hanging mount - white) included
