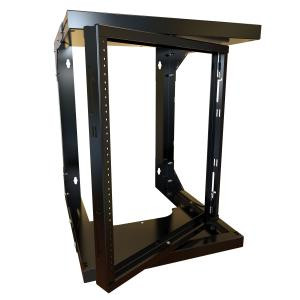

Product Overview
Features
- Braces and rack rails are constructed of 12-gauge steel, while the other body components are constructed of 16-gauge steel.
- EIA compliant 10-32 tapped rails with 19” mounting and rack unit indicators.
- Rack frame swings (in both directions) at the center providing convenient equipment access without exceeding the rack footprint.
- Adjustable total variable depth from 18” to 24” using slots for easy set-up and adjusting.
- Variable usable depth from 15.1" to 21.1"
- Top and Bottom rack units have a usable depth from 12.4" to 18.4".
- Three (3) spring pin positions allow for simplified equipment maintenance.
- Side and rear cable access with multiple tie points for cable management.
- Finished in RAL9005 black powder paint.
- Knockdown design ships unassembled for easy handling and shipping protection.
- Tested to nearly double the suggested load rating of 220 lbs (100 kg).
- TAA Compliant.
- RoHS Compliant.
- Manufactured in North America within an ISO 9001:2015 certified facility.
Included in the Box
- HWMR components and assembly hardware.
- Assembly bulletin.
- Wall mounting template for easy 16-inch center installation. (Wall mounting hardware not included)
- Starter pack of SCREW1032-50 screws.
Other Information
