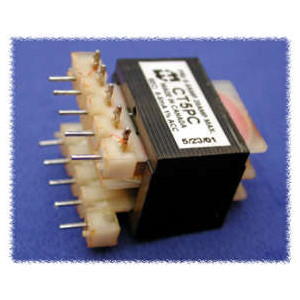

Description
Features
- Designed for a 5 amp. primary (maximum 20 Amp), secondary current 5 ma.
- 40 - 1,000 Hz. operation.
- Customer to supply primary winding (1 turn through open top of transformer bobbin).
- Two hole chassis mount or P.C. board pin mount.
- Both units have 5 ma. secondary for use with standard AC ammeters with 5 ma.movements.
- High accuracy windings (1%)
Application Data
To obtain current measurement:
- Pass the wire carrying the current to be measured through the window of the CT transformer (acting as a primary winding).
- Connect the CT secondary to an ammeter with a 5 mA movement.
