Product Overview

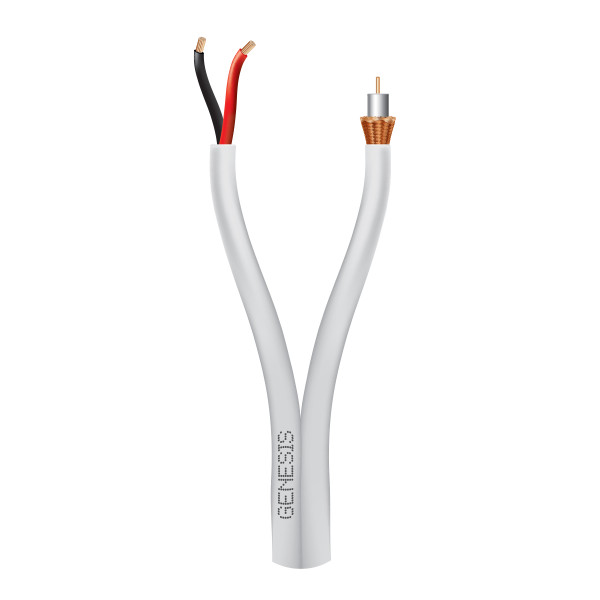

53556112 – RG59 WITH BC BRAID & 18/2 PLENUM, NATURAL, 500 FT. REEL-IN-BOX
This Genesis® cable features a coaxial video and a power cable arranged in a parallel-zip construction with a plenum rating. The coaxial component consists of a solid 20 AWG copper center conductor and a 95% coverage bare copper braid. The power component consists of 2 stranded 18 AWG copper conductors. Choose this cable for a dependable analog video surveillance connection.
| Cable Rating | Plenum, FT6 |
|---|---|
| Cable Listing | CL2P, CMP, FT6 |
| Wire Gauge (AWG) | 20, 18 |
| Conductor Material | Bare Copper |
| Shielding | Yes |
| Rip Cord | Yes |
| Jacket Material | Plenum PVC |
| Nominal Outer Diameter | 0.195 x 0.420 in. |
| Rated Voltage (Max) | 300 Volts |
| Temperature Rating (Max) | 75 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 500 ft |
| Length Per Unit | 500 ft. |
| Package Quantity | 1 |
| Cable Packaging | Reel-in-a-Box |
| Package Length | 13.5 in |
| Package Width | 11 in |
| Package Height | 11 in |
| Product Weight | 26 lb |
