Product Overview

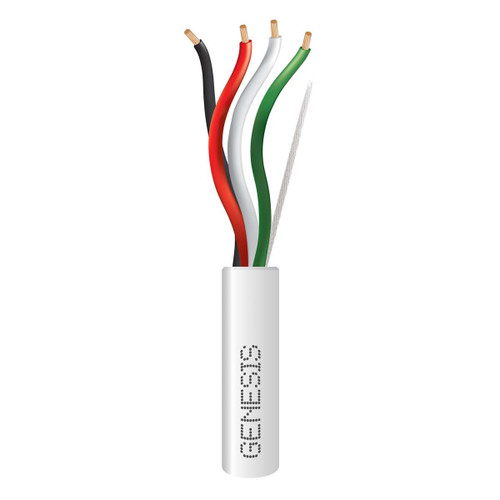

52555001 – 12 AWG 4C STR RISER SPEAKER, WHITE, 500 FT. REEL
This Genesis® cable features 4 stranded 12 AWG copper conductors and a riser rating. Choose this cable for a dependable speaker/audio wiring.
| Cable Rating | Riser, FT4 |
|---|---|
| Cable Listing | CL3R, CMR, FT4, Sunlight Resistant |
| Wire Gauge (AWG) | 12 |
| Solid or Stranded | Stranded |
| Number of Strands | 65 |
| Conductor Material | Bare Copper |
| Number of Conductors | 4 |
| Conductor Insulation Material | Polypropylene |
| Insulation Colors | Black, Red, White, Green |
| Shielding | No |
| Rip Cord | Yes |
| Jacket Material | PVC |
| Nominal Outer Diameter | 0.312 in. |
| Rated Voltage (Max) | 300 Volts |
| DC Resistance (Max) | 1.65 Ohms / 1000 ft. at 20 °C |
| Velocity of Propagation | 67% |
| Temperature Rating (Max) | 60 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 500 ft |
| Length Per Unit | 500 ft. |
| Package Quantity | 1 |
| Cable Packaging | Reel |
| Package Length | 11.75 in |
| Package Width | 11.75 in |
| Package Height | 13.25 in |
| Product Weight | 50.1 lb |
