Product Overview

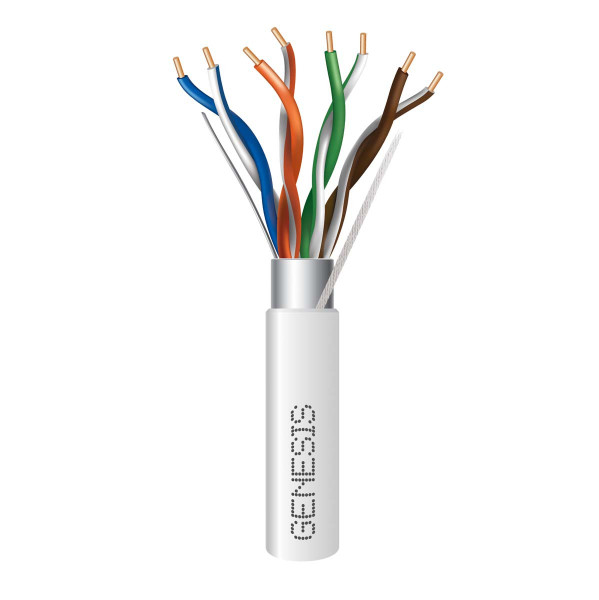

Riser Rated Networking/Ethernet Cable
Part Number: 5178
4 Overall Shielded Twisted Pair (F/UTP) Category 5e
Ratings CMR, FT4, Sunlight Resistant
Approvals UL Listed, UL Verified
Construction
Conductor 24 AWG Solid Bare Copper Color Code Pair
Conductor Count 8 (4 pairs) Blue & White/Blue 1
Insulation HDPE or PP Orange & White/Orange 2
Shielding Overall Foil Shield Green & Green/White 3
Rip Cord Yes Brown & Brown/White 4
Jacket PVC
Overall Diameter 0.250” nom.
Print Legend GENESIS P/N 5178 SHIELDED 4PR24 Cat5E E175104-1 (UL) CMR C(UL)US FT4 SUN RES 75C
(RoHS) UL VERIFIED TO TIA-568-C.2 Cat5E XXXXXXXX YYYYFT RM# A B C D E F 1 2 3 4 5 6 7 8 9
Properties
Temperature -20°C to 75°C
Operating Voltage 300V max.
RoHS Compliant Yes
Velocity of Propagation 69% nominal
DC Resistance 9.38 Ohms/100m max. @ 20°C
Resistance Unbalance 5% max. @ 20°C
Capacitance 5.6 nF/100m max. @ 20°C
Capacitance Unbalance 330 pF/100m max. @ 20°C
Propagation Delay 570 ns/100m max. @ 20°C
Delay Skew 45 ns/100m max. @ 20°C
