Product Overview

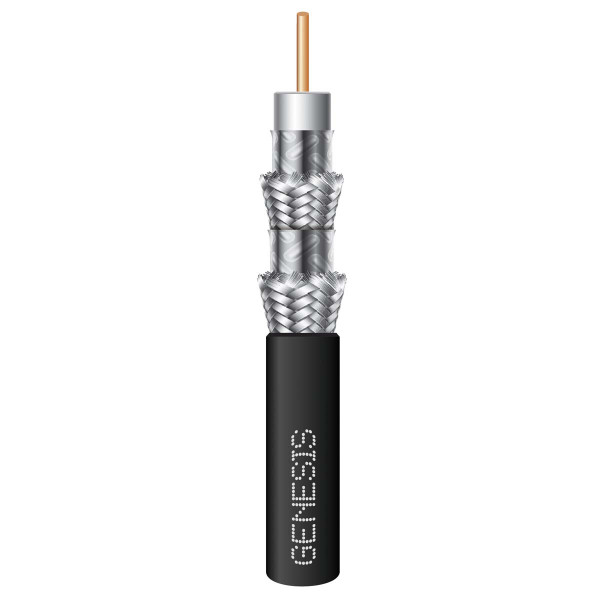

50071008 – RG6 CCS Quad-Shield CATV, BLACK, 1000 FT. REEL
This Genesis® cable features a solid 18 AWG copper-clad steel center conductor, a Quad shield, and a general purpose rating. Choose this cable for reliable CATV wiring.
| Cable Rating | General Purpose |
|---|---|
| Cable Listing | CATV, CL2, CM, Sunlight Resistant |
| Wire Gauge (AWG) | 18 |
| Solid or Stranded | Solid |
| Number of Strands | 1 |
| Conductor Material | Copper Clad Steel |
| Number of Conductors | 1 |
| Shielding | Yes |
| Shielding Type | Quad |
| Rip Cord | No |
| Jacket Material | PVC |
| Nominal Outer Diameter | 0.293 in. |
| Rated Voltage (Max) | 300 Volts |
| DC Resistance (Max) | 31.1 Ohms / 1000 ft. at 20 °C |
| Velocity of Propagation | 78% |
| Temperature Rating (Max) | 75 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 1000 ft |
| Length Per Unit | 1000 ft. |
| Package Quantity | 1 |
| Cable Packaging | Reel |
| Product Weight | 35 lb |
