Product Overview

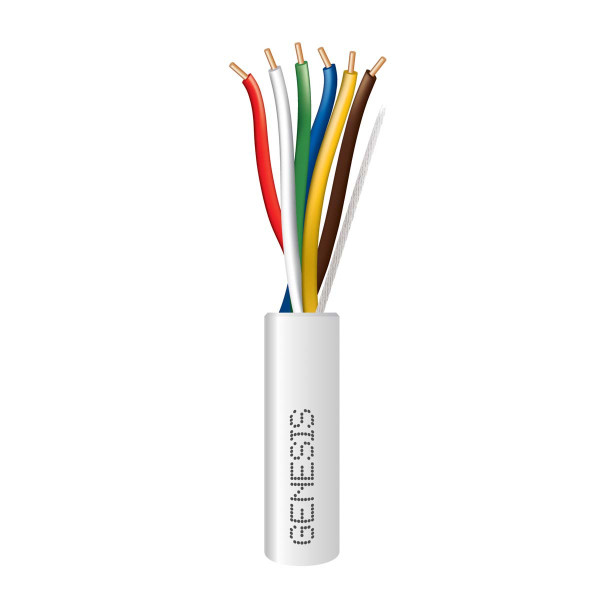

47140301 – 18 AWG 6C SOL, WHITE, 4 X 250 FT. REELS
This Genesis® cable features 6 solid 18 AWG copper conductors and a general purpose rating. Choose this cable for a dependable Thermostat wiring solution.
| Cable Rating | General Purpose |
|---|---|
| Cable Listing | CL2, Sunlight Resistant |
| Wire Gauge (AWG) | 18 |
| Solid or Stranded | Solid |
| Number of Strands | 1 |
| Conductor Material | Bare Copper |
| Number of Conductors | 6 |
| Conductor Insulation Material | Polypropylene |
| Insulation Colors | Red, White, Green, Blue, Yellow, Brown |
| Shielding | No |
| Rip Cord | Yes |
| Jacket Material | PVC |
| Nominal Outer Diameter | 0.188 in. |
| Rated Voltage (Max) | 150 Volts |
| DC Resistance (Max) | 6.52 Ohms / 1000 ft. at 20 °C |
| Capacitance (Nominal) | 22.8 pF / ft. |
| Impedance (Nominal) | 67 Ohms |
| Velocity of Propagation | 67% |
| Temperature Rating (Max) | 60 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 1000 ft |
| Length Per Unit | 250 ft. |
| Package Quantity | 4 |
| Cable Packaging | Reel |
| Package Length | 13.25 in |
| Package Width | 13.25 in |
| Package Height | 6.25 in |
| Product Weight | 39 lb |
