Description

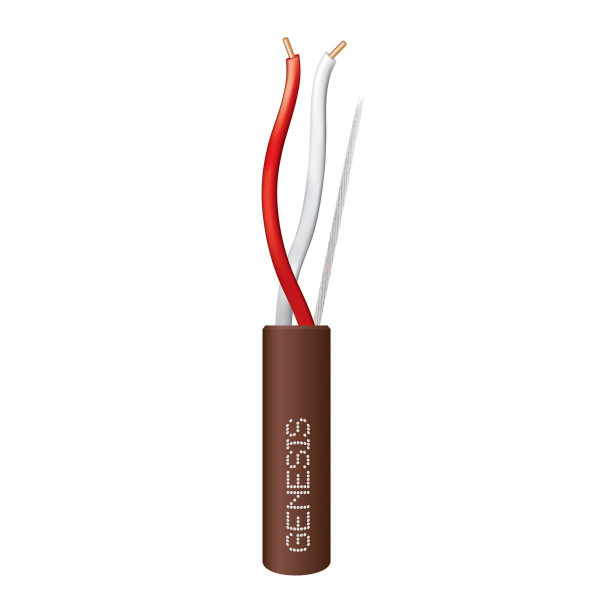

47014807 – 20 AWG 2C SOL, BROWN, 4 X 500 FT. REELS
This Genesis® cable features 2 solid 20 AWG copper conductors and a general purpose rating. Choose this cable for a dependable Thermostat wiring solution.
| Cable Rating | General Purpose |
|---|---|
| Cable Listing | CL2, Sunlight Resistant |
| Wire Gauge (AWG) | 20 |
| Solid or Stranded | Solid |
| Number of Strands | 1 |
| Conductor Material | Bare Copper |
| Number of Conductors | 2 |
| Conductor Insulation Material | Polypropylene |
| Insulation Colors | Red, White |
| Shielding | No |
| Rip Cord | Yes |
| Jacket Material | PVC |
| Nominal Outer Diameter | 0.118 in. |
| Rated Voltage (Max) | 150 Volts |
| DC Resistance (Max) | 11.1 Ohms / 1000 ft. at 20 °C |
| Velocity of Propagation | 67% |
| Temperature Rating (Max) | 60 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 2000 ft |
| Length Per Unit | 500 ft. |
| Package Quantity | 4 |
| Cable Packaging | Reel |
| Package Length | 13.25 in |
| Package Width | 13.25 in |
| Package Height | 4.25 in |
| Product Weight | 22 lb |
