Description

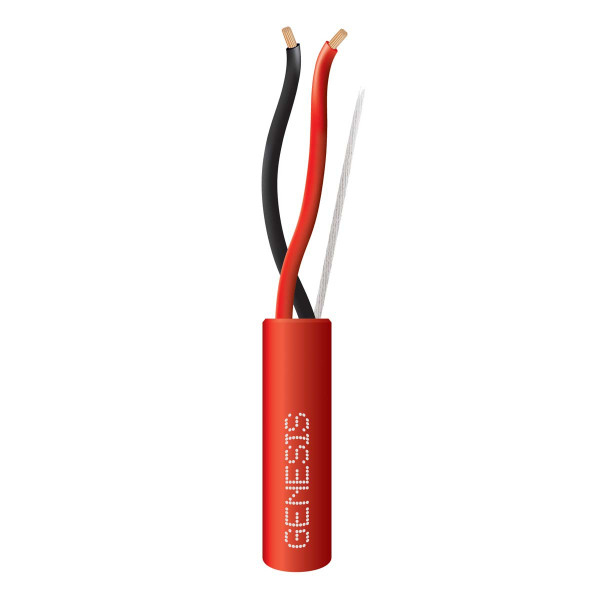

Plenum Rated Power Limited Fire Alarm Cable
Part Number: 4523
16 AWG 2 Stranded Conductors
Ratings FPLP, CL3P, FT6
Approvals UL Listed
Construction
Conductor 16 AWG 26 Strand Bare Copper
Conductor Count 2
Insulation Plenum PVC (0.007" nom.)
Insulation Colors Black, Red
Lay Length 6.50" nom.
Shielding N/A
Rip Cord Yes
Jacket Plenum PVC (0.015 " nom.)
Overall Diameter 0.180" nom.
Print Legend GENESIS P/N 4523 2C 16AWG E175105 (UL) FPLP OR CL3P FT6 75C (RoHS) W/O#
XXXXXX-XXXXXXX XXXXFT A B C D E F 1 2 3 4 5 6 7 8 9
Properties
Operating Voltage 300 Volts max.
DC Resistance 4.19 Ohms/1000' at 20°C
Capacitance 34.6 pF/ft. nom.
Impedance 54 Ohms nom.
Temperature -20°C to 75°C
Flame Rating NFPA 262 (Plenum); CSA C22.2 No. 2556 (FT6)
RoHS Compliant Yes
Country of Origin USA
