Product Overview

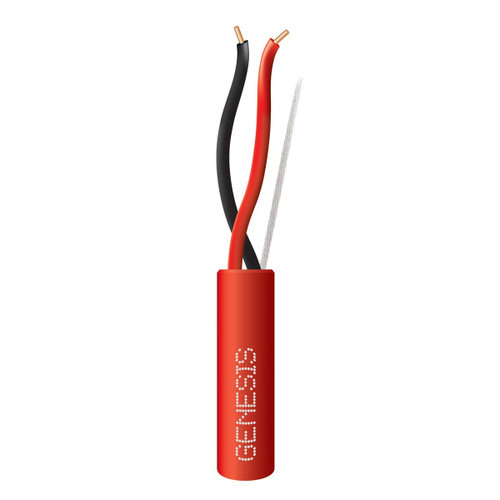

45151004 – 12 AWG 2C SOL PLENUM, RED, 1000 FT. REEL
This Genesis® cable features 2 solid 12 AWG copper conductors and a plenum rating. Choose this cable for a dependable fire alarm system wiring solution.
| Cable Rating | Plenum |
|---|---|
| Cable Listing | FPLP, CL3P, FT6 |
| Wire Gauge (AWG) | 12 |
| Solid or Stranded | Solid |
| Number of Strands | 1 |
| Conductor Material | Bare Copper |
| Number of Conductors | 2 |
| Conductor Insulation Material | Plenum PVC |
| Insulation Colors | Black, Red |
| Shielding | No |
| Rip Cord | Yes |
| Jacket Material | Plenum PVC |
| Nominal Outer Diameter | 0.228 in. |
| Rated Voltage (Max) | 300 Volts |
| DC Resistance (Max) | 1.62 Ohms / 1000 ft. at 20 °C |
| Capacitance (Nominal) | 25.9 pF / ft. |
| Impedance (Nominal) | 59 Ohms |
| Velocity of Propagation | 67% |
| Temperature Rating (Max) | 75 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 1000 ft |
| Length Per Unit | 1000 ft. |
| Package Quantity | 1 |
| Cable Packaging | Reel |
| Package Length | 11.75 in |
| Package Width | 11.75 in |
| Package Height | 13.25 in |
| Product Weight | 54 lb |
