Description

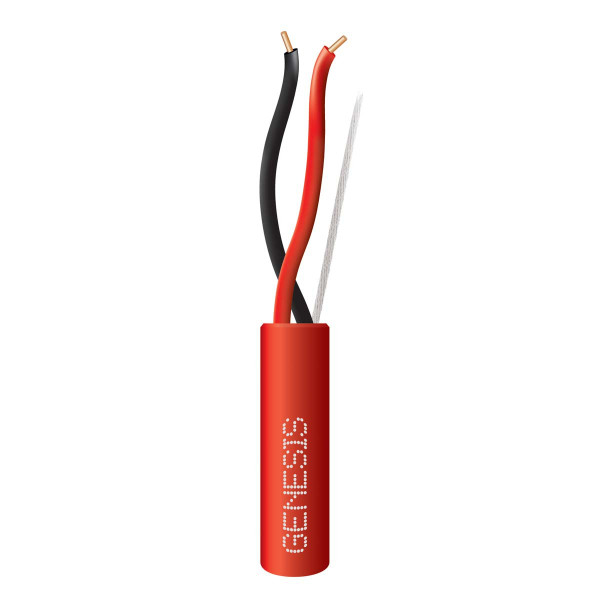

45115504 – 16 AWG 2C SOL PLENUM, RED, 500 FT. PULL BOX
This Genesis® cable features 2 solid 16 AWG copper conductors and a plenum rating. Choose this cable for a dependable fire alarm system wiring solution.
| Cable Rating | Plenum |
|---|---|
| Cable Listing | FPLP, CL3P, FT6 |
| Wire Gauge (AWG) | 16 |
| Solid or Stranded | Solid |
| Number of Strands | 1 |
| Conductor Material | Bare Copper |
| Number of Conductors | 2 |
| Conductor Insulation Material | Plenum PVC |
| Insulation Colors | Black, Red |
| Shielding | No |
| Rip Cord | Yes |
| Jacket Material | Plenum PVC |
| Nominal Outer Diameter | 0.177 in. |
| Rated Voltage (Max) | 300 Volts |
| DC Resistance (Max) | 4.1 Ohms / 1000 ft. at 20 °C |
| Capacitance (Nominal) | 21.8 pF / ft. |
| Impedance (Nominal) | 66 Ohms |
| Velocity of Propagation | 67% |
| Temperature Rating (Max) | 75 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 500 ft |
| Length Per Unit | 500 ft. |
| Package Quantity | 1 |
| Cable Packaging | Pull Box |
| Package Length | 10.5 in |
| Package Width | 7.75 in |
| Package Height | 10.5 in |
| Product Weight | 11.6 lb |
