Description

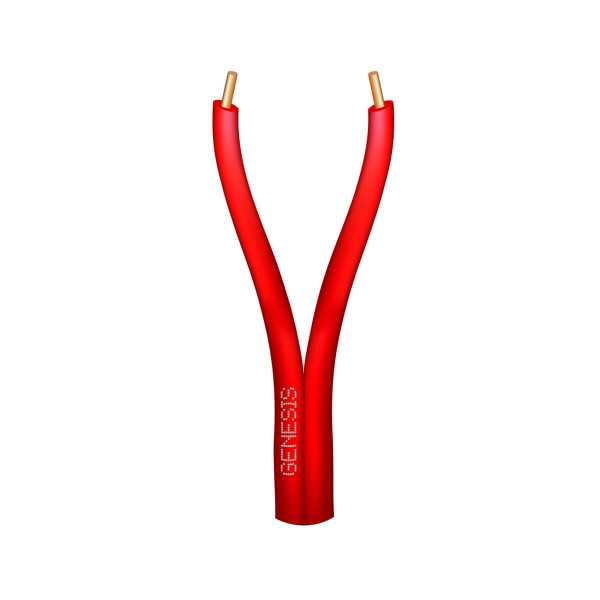

44231004 – 16 AWG 2C SOL RISER, RED, 1000 FT. REEL
This Genesis® cable features 2 solid 16 AWG copper conductors and a riser rating. Choose this cable for a dependable fire alarm system wiring solution.
| Cable Rating | Riser |
|---|---|
| Cable Listing | FPLR, CL3R, FT4, Sunlight Resistant |
| Wire Gauge (AWG) | 16 |
| Solid or Stranded | Solid |
| Number of Strands | 1 |
| Conductor Material | Bare Copper |
| Number of Conductors | 2 |
| Conductor Insulation Material | PVC |
| Insulation Colors | Black, Red |
| Shielding | No |
| Rip Cord | No |
| Jacket Material | PVC |
| Nominal Outer Diameter | 0.094 x 0.200 in. |
| Rated Voltage (Max) | 300 Volts |
| DC Resistance (Max) | 4.1 Ohms / 1000 ft. at 20 °C |
| Capacitance (Nominal) | 35.4 pF / ft. |
| Impedance (Nominal) | 69 Ohms |
| Velocity of Propagation | 45% |
| Temperature Rating (Max) | 75 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 1000 ft |
| Length Per Unit | 1000 ft. |
| Package Quantity | 1 |
| Cable Packaging | Reel |
| Package Length | 11.75 in |
| Package Width | 11.75 in |
| Package Height | 7.25 in |
| Product Weight | 23.3 lb |
