Product Overview

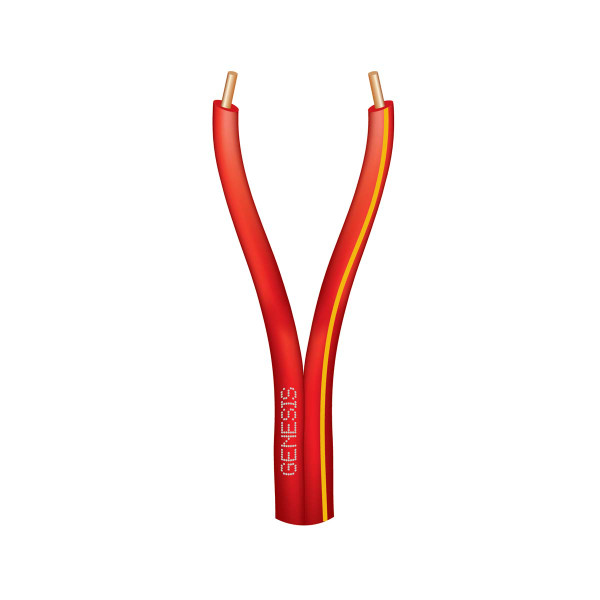

Riser Rated Power Limited Fire Alarm Cable
Part Number: 4422
18 AWG 2 Solid Conductors Zipcord
Ratings FPLR, CL3R, FT4, Sunlight Resistant
Approvals UL Listed
Construction
Conductor 18 AWG Solid Bare Copper
Conductor Count 2
Insulation PVC (0.022" nom.)
Insulation Colors Red, Red
Lay Length Parallel
Shielding N/A
Rip Cord No
Jacket N/A
Overall Diameter 0.088" x 0.196" nom.
Print Legend GENESIS P/N 4422 2C 18AWG E175105 (UL) FPLR OR CL3R FT4 SUN RES 75C (RoHS)
W/O# XXXXXX-XXXXXXX XXXXFT A B C D E F 1 2 3 4 5 6 7 8 9
Properties
Operating Voltage 300 Volts max.
DC Resistance 6.52 Ohms/1000' at 20°C
Capacitance 29.9 pF/ft. nom.
Impedance 79 Ohms nom.
Temperature -20°C to 75°C
Flame Rating UL 1666 (Riser); CSA C22.2 No. 2556 (FT4)
RoHS Compliant Yes
Country of Origin USA
