Product Overview

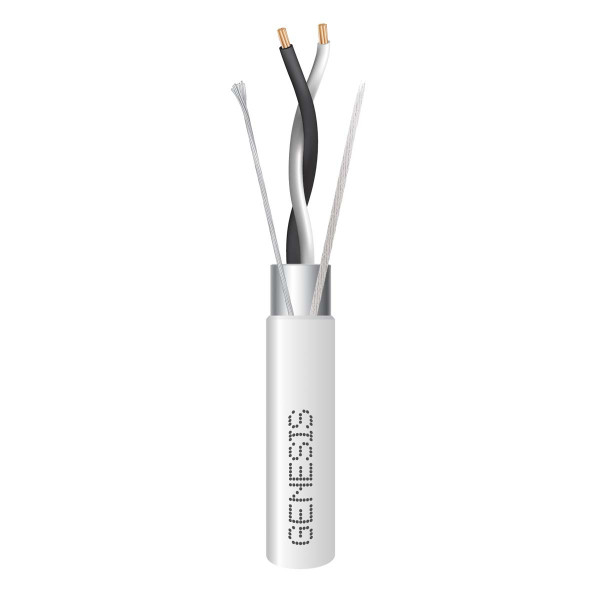

33221001 – 18 AWG 1P STR SHIELDED PLENUM, WHITE, 1000 FT. REEL
This Genesis® cable features a stranded 18 AWG copper conductor-pair, an overall foil shield with a drain wire, and a plenum rating. Choose this cable for high-speed data transmission for building automation, EIA-485, BACnet, and other communication systems.
| Cable Rating | Plenum, FT6 |
|---|---|
| Cable Listing | CL3P, FPLP, CMP, FT6 |
| Wire Gauge (AWG) | 18 |
| Solid or Stranded | Stranded |
| Number of Strands | 19 |
| Conductor Material | Bare Copper |
| Number of Conductors | 2 |
| Number of Pairs | 1 |
| Conductor Insulation Material | FEP |
| Insulation Colors | Black, White |
| Shielding | Yes |
| Shielding Type | Overall Foil |
| Rip Cord | Yes |
| Jacket Material | Plenum PVC |
| Nominal Outer Diameter | 0.252 in. |
| Rated Voltage (Max) | 300 Volts |
| DC Resistance (Max) | 6.66 Ohms / 1000 ft. at 20 °C |
| Capacitance (Nominal) | 12.5 pF / ft. |
| Impedance (Nominal) | 115 Ohms |
| Velocity of Propagation | 82% |
| Temperature Rating (Max) | 75 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 1000 ft |
| Length Per Unit | 1000 ft. |
| Package Quantity | 1 |
| Cable Packaging | Reel |
| Package Length | 11.75 in |
| Package Width | 11.75 in |
| Package Height | 13.25 in |
| Product Weight | 29.9 lb |
