Product Overview

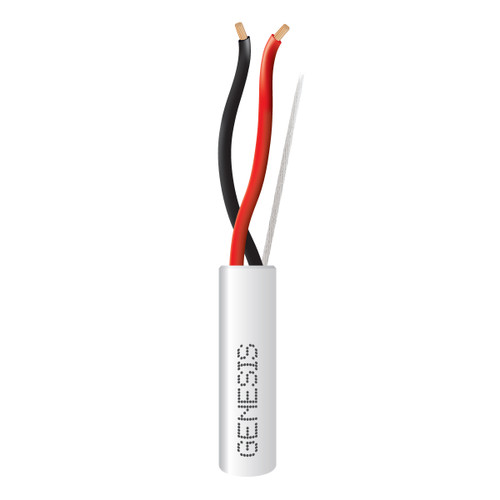

11271001 – 14 AWG 2C STR, WHITE, 1000 FT. REEL
This Genesis® cable features 2 stranded 14 AWG copper conductors and a general purpose rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
| Cable Rating | General Purpose |
|---|---|
| Cable Listing | CL3, Sunlight Resistant |
| Wire Gauge (AWG) | 14 |
| Solid or Stranded | Stranded |
| Number of Strands | 19 |
| Conductor Material | Bare Copper |
| Number of Conductors | 2 |
| Conductor Insulation Material | Polypropylene |
| Insulation Colors | Black, Red |
| Shielding | No |
| Rip Cord | Yes |
| Jacket Material | PVC |
| Nominal Outer Diameter | 0.210 in. |
| Rated Voltage (Max) | 300 Volts |
| DC Resistance (Max) | 2.62 Ohms / 1000 ft. at 20 °C |
| Capacitance (Nominal) | 23.9 pF / ft. |
| Impedance (Nominal) | 64 Ohms |
| Velocity of Propagation | 67% |
| Temperature Rating (Max) | 60 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 1000 ft |
| Length Per Unit | 1000 ft. |
| Package Quantity | 1 |
| Cable Packaging | Reel |
| Package Length | 11.75 in |
| Package Width | 11.75 in |
| Package Height | 7.25 in |
| Product Weight | 34.6 lb |
