Product Overview

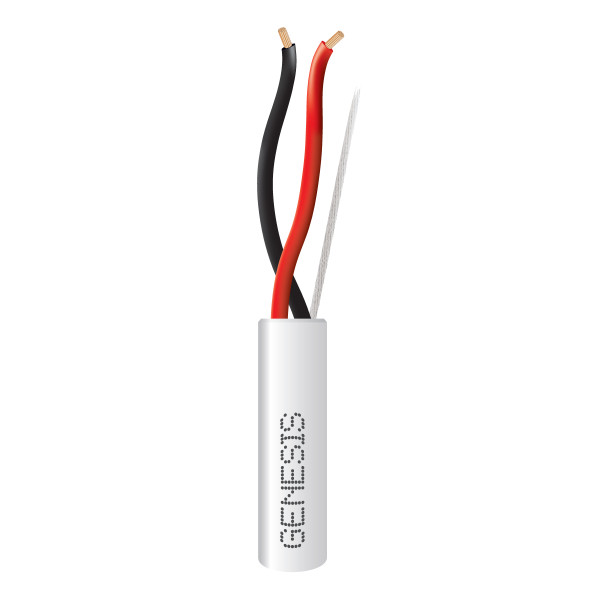

11185501 – 18 AWG 2C STR, WHITE, 500 FT. PULL BOX
This Genesis® cable features 2 stranded 18 AWG copper conductors and a general purpose rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
| Cable Rating | General Purpose |
|---|---|
| Cable Listing | CL2, CM, Sunlight Resistant |
| Wire Gauge (AWG) | 18 |
| Solid or Stranded | Stranded |
| Number of Strands | 19 |
| Conductor Material | Bare Copper |
| Number of Conductors | 2 |
| Conductor Insulation Material | Polypropylene |
| Insulation Colors | Black, Red |
| Shielding | No |
| Rip Cord | Yes |
| Jacket Material | PVC |
| Nominal Outer Diameter | 0.148 in. |
| Rated Voltage (Max) | 300 Volts |
| DC Resistance (Max) | 6.66 Ohms / 1000 ft. at 20 °C |
| Capacitance (Nominal) | 22.7 pF / ft. |
| Impedance (Nominal) | 67 Ohms |
| Velocity of Propagation | 67% |
| Temperature Rating (Max) | 60 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 500 ft |
| Length Per Unit | 500 ft. |
| Package Quantity | 1 |
| Cable Packaging | Pull Box |
| Package Length | 10 in |
| Package Width | 6 in |
| Package Height | 10 in |
| Product Weight | 7.4 lb |
