Product Overview

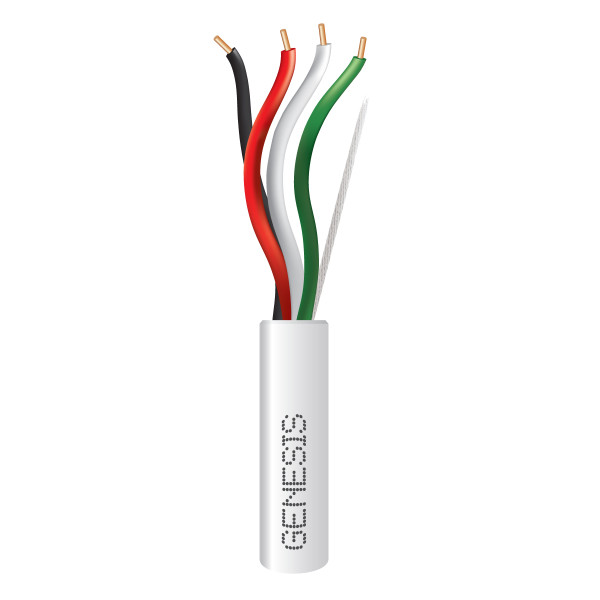

11031101 – 22 AWG 4C SOL, WHITE, 1000 FT. PULL BOX
This Genesis® cable features 4 solid 22 AWG copper conductors and a general purpose rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
| Cable Rating | General Purpose |
|---|---|
| Cable Listing | CL2, CM, Sunlight Resistant |
| Wire Gauge (AWG) | 22 |
| Solid or Stranded | Solid |
| Number of Strands | 1 |
| Conductor Material | Bare Copper |
| Number of Conductors | 4 |
| Conductor Insulation Material | Polypropylene |
| Insulation Colors | Black, Red, Green, Yellow |
| Shielding | No |
| Rip Cord | No |
| Jacket Material | PVC |
| Nominal Outer Diameter | 0.120 in. |
| Rated Voltage (Max) | 300 Volts |
| DC Resistance (Max) | 18 Ohms / 1000 ft. at 20 °C |
| Capacitance (Nominal) | 18.8 pF / ft. |
| Impedance (Nominal) | 81 Ohms |
| Velocity of Propagation | 67% |
| Temperature Rating (Max) | 60 °C |
| Temperature Rating (Min) | -20 °C |
| Product Length | 1000 ft |
| Length Per Unit | 1000 ft. |
| Package Quantity | 1 |
| Cable Packaging | Pull Box |
| Package Length | 11.75 in |
| Package Width | 8 in |
| Package Height | 11.75 in |
| Product Weight | 12.6 lb |
