Product Overview

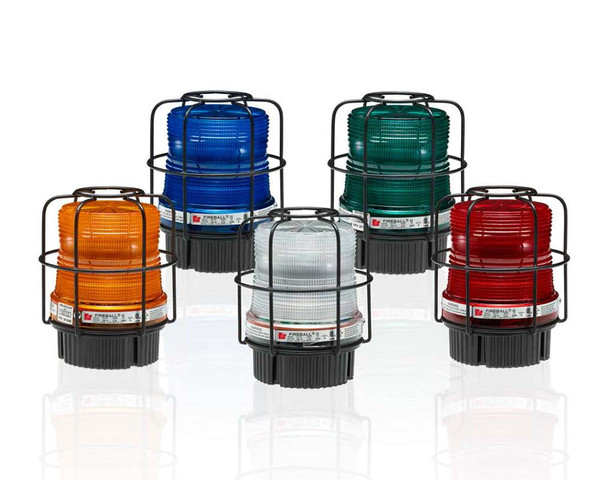

Model FB2LEDX is a multi-pattern hazardous location LED available in five colors and capable of three user-selectable flash patterns: 60 FPM (default), 120 FPM, or steady. The unit features Federal Signal’s patented Power Select™ technology which allows a user to change between flash patterns without having to open the unit, by following a sequence when power is applied.
FB2LEDX is available in 12-24VDC and 120-240VAC. The zinc die-cast alloy base features an integrated 1/2-inch NPT pipe mount and three holes required for surface mount configurations.
FB2LEDX comes with a stainless steel lens guard for added protection. The unit is designed to protect against corrosion, vibration, water- and dust-ingress, and high pressure and temperature spray-downs. The unit is ideal in harsh and hazardous applications including industrial warning, process control, status indication, food processing, and oil and gas environments.
- Available in 12-24VDC or 120-240VAC
- Five lens colors: Amber, Blue, Clear, Green, and Red
- Stainless steel lens guard included
- 50,000 hour LED
- Patented Power Select™ technology
- Three flash pattern options: 60 FPM (default), 120 FPM or steady
- Integrated 1/2-inch NPT pipe and surface mount
- Indoor/outdoor use
- Conformal coated PCBA
- Type 4X, IP66 enclosure
- IP69K compliant
- UL and cUL listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; and Class III
Other Information
