Description
DESCRIPTION

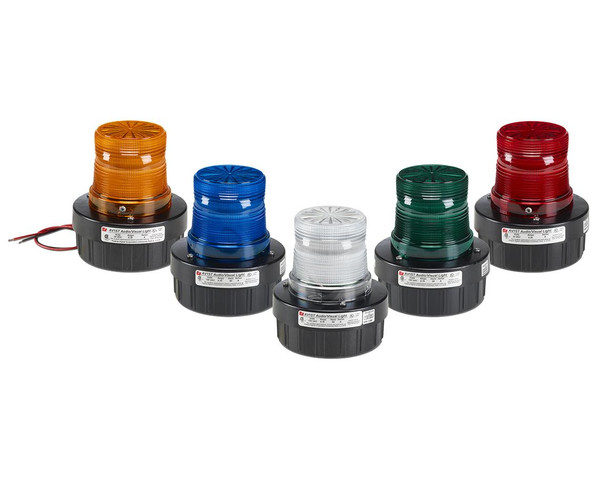

Model AV1ST is a combination audible/visual signal. The AV1ST features a 100% polycarbonate housing that is rated for Type 3R rain-tight applications.
The AV1ST design provides three mounting configurations: 1/2-inch NPT pipe, a 4-inch octagonal electrical box or any flat surface. All AV1ST units feature a twist and lock lens design to allow for tool free access to the strobe tube. The fresnel lens provides superior visibility in all directions.
The integrated buzzer provides 85 dBa output @ 10 feet (95 dBa @ 1m).
The AV1ST comes in two voltage variations: 24VDC and 120VAC. Each unit is factory assembled with two color-coded leads. If desired, the user can remove the leads and connect directly to the terminal block located in the base of the unit.
FEATURES
- Available in 24VDC and 120VAC
- Surface mount, integrated 1/2-inch NPT pipe mount, and 4-inch electrical box mount
- Five lens colors: Amber, Blue, Clear, Green and Red
- Twist-off lens for easy access
- Internal buzzer produces 85 dBa @ 10' (95 dBa @ 1m)
- Conformal coated PCBA
- Type 3R enclosure
- CSA Certified
- UL and cUL Listed
