Product Overview
DESCRIPTION

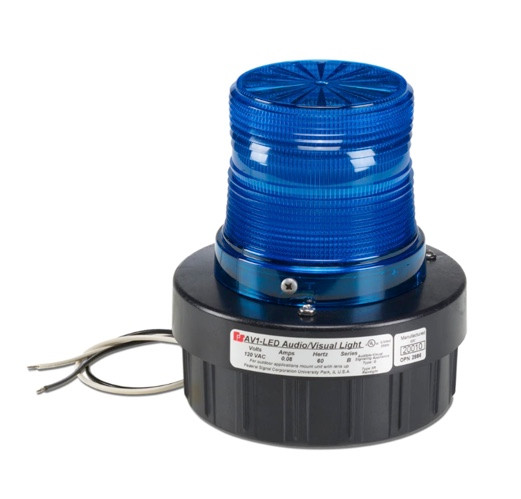

Model AV1-LED is a combination audible/visual signal. The AV1-LED features a 100% polycarbonate housing that is rated for Type 3R rain-tight applications.
All AV1-LED units feature a twist-and-lock lens design to allow for tool-free access to the LED. The fresnel lens provides superior visibility in all directions.
The integrated buzzer provides 85 dBa output @ 10 feet (95 dBa @ 1m). The unit is capable of independent flashing light and sounder operation. The LED can be field adjusted to two flash patterns, 60 FPM or 75 FPM, via a jumper on the PC board.
Each unit is factory assembled with two color-coded leads. If desired, the user can remove the leads and connect directly to the terminal block located in the base of the unit.
- Available in 24VDC and 120VAC
- 50,000 hour LED light source
- Surface mount, integrated 1/2-inch NPT pipe mount, and 4-inch electrical box mount
- Five lamp/lens colors: Amber, Blue, Clear, Green and Red
- Twist-off lens for easy access
- Internal buzzer produces 85 dBa at 10' (95 dBa @ 1m)
- PLC compatible
- Type 3R enclosure
- UL and cUL Listed
RESOURCES
Other Information
Federal Signal orders require a $150 combined minimum. Please contact us about possible orders under $150. Orders over $2000 ship for free.
DESCRIPTION
Model AV1-LED is a combination audible/visual signal. The AV1-LED features a 100% polycarbonate housing that is rated for Type 3R rain-tight applications.
All AV1-LED units feature a twist-and-lock lens design to allow for tool-free access to the LED. The fresnel lens provides superior visibility in all directions.
The integrated buzzer provides 85 dBa output @ 10 feet (95 dBa @ 1m). The unit is capable of independent flashing light and sounder operation. The LED can be field adjusted to two flash patterns, 60 FPM or 75 FPM, via a jumper on the PC board.
Each unit is factory assembled with two color-coded leads. If desired, the user can remove the leads and connect directly to the terminal block located in the base of the unit.
- Available in 24VDC and 120VAC
- 50,000 hour LED light source
- Surface mount, integrated 1/2-inch NPT pipe mount, and 4-inch electrical box mount
- Five lamp/lens colors: Amber, Blue, Clear, Green and Red
- Twist-off lens for easy access
- Internal buzzer produces 85 dBa at 10' (95 dBa @ 1m)
- PLC compatible
- Type 3R enclosure
- UL and cUL Listed
