Description

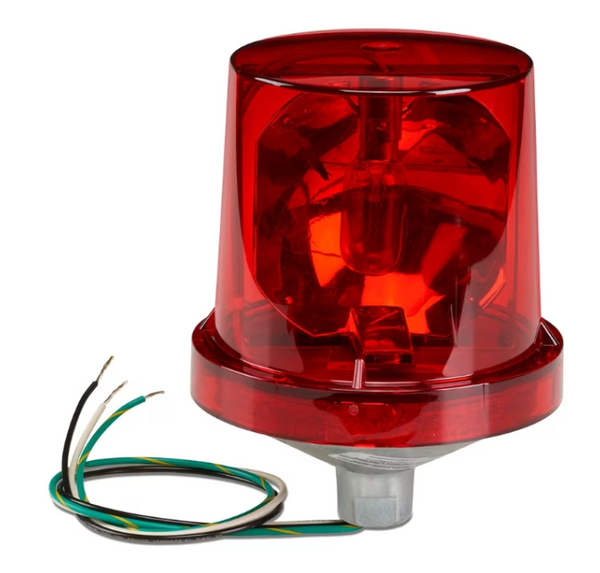

Electraray® Model 225 is a compact, rotating warning light designed for industrial uses.
Model 225 has a closed cell neoprene gasket that makes it water resistant. The injection molded reflector rotates around an incandescent lamp and produces 90 flashes per minute. It is available ready to mount on a 1/2-inch NPT pipe. Optional mounting brackets are available, simplifying installation on walls and in corners.
Federal Signal’s Electraray rotating light is ideal for calling attention to emergency situations or process status changes.
- Available in 120VAC
- 25 watt incandescent lamp
- Integrated 1/2-inch NPT pipe mount
- Indoor/outdoor use
- Type 4X, IP66 enclosure
- IP69K compliant
- UL and cUL Listed
Specifications
| Body Color | Silver |
| Peak Candela Power | 1000 |
| Certification Listing | UL, cUL |
| Enclosure Rating | Type 4X, IP66, IP69K |
| Environmental Rating | Ordinary Location |
| Flash Patterns | 1x Flash |
| Flashes Per Minute | 90 |
| Lamp Life Hours | 1000 |
| Light Source | Incandescent |
| Mount Type | 1/2-Inch NPT Pipe |
| Operating Temperature (C) | -35 to 66 |
| Operating Temperature (F) | -31 to 150 |
| Warranty | Five-Year |
| Diameter (in) | 5.5 |
| Diameter (mm) | 139.7 |
| Height (in) | 7.25 |
| Height (mm) | 184.2 |
| Length (in) | 7.25 |
| Length (mm) | 184.15 |
| Weight (Kg) | 0.9 |
| Weight (lbs) | 2 |
