Description
DESCRIPTION

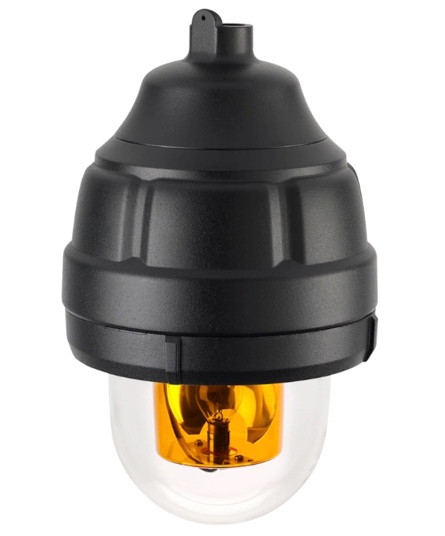

Model 121X rotating light flashes 90 times per minute and produces a 360° visual signal. Model 121X covers an entire range of possible mounting configurations – including dome up.
This corrosion resistant unit’s copper-free aluminum housing is finished with a powder coat.
The 121X uses a synchronous motor to drive a parabolic reflector around an incandescent lamp. This results in a 360° rotating beam which is concentrated in a horizontal plane.
The 121X features a spring clip-mounted lamp for quick access when inspecting or relamping. The 121X can be paired with a pendant, ceiling or wall mount. Installation is simple – with the mounting box in place, the fixture is threaded onto the mounting box, making the electrical connection.
The mount for this Signal is not included.
Federal Signal’s rugged 121X warning light is designed for explosion-proof applications and/or corrosive environments. It is ideal for use in indoor and outdoor areas such as oil rigs, mines, refineries, and chemical plants.
FEATURES
- Five lens colors: Amber, Blue, Clear, Green and Red
- Available in 24VDC
- 3/4" NPT pendant, ceiling and wall mount options available
- Approved for mounting in any manner-including dome up
- Optional dome guard
- Type 4X, IP66 enclosure
- IP69K compliant
- Marine Rated
- UL and cUL Listed for Class I, Division 1 and 2, Groups C and D; Class II, Division 1, Groups E, F and G; Class III
