Description

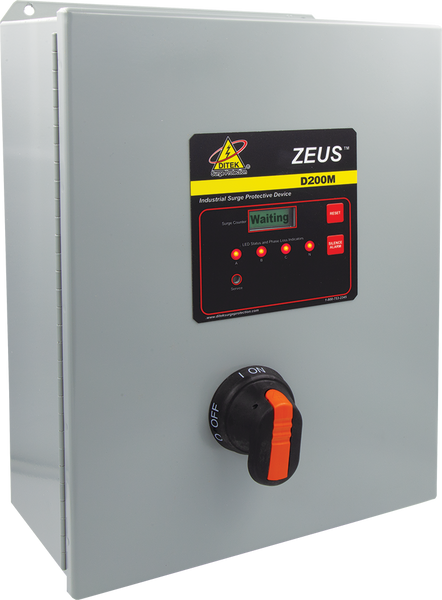

Modular Surge Protective Device with Integral Disconnect - 200kA/Phase
DITEK's D200M-T industrial surge protectors with integral disconnect are designed to meet new construction bid/spec requirements for facility-wide protection. Each model provides a high surge current rating to ensure long service life, and includes service assurance features to support proactive operational management. The D200M-120/2083YT protects 120/208VAC three phase wye panels.
- 200,000 Amps/phase surge current rating, 100,000 Amps/mode, ensures long service life
- Visual LED end of life and phase loss indicators
- Audible alarm with silence button
- Form C dry contacts for remote monitoring
- EMI/RFI noise filtering
- Replaceable SPD module
- Integral disconnect switch included
DITEK’s D200MT Industrial Surge Protectors with integral disconnect are designed to provide professional-grade protection to AC power systems in the most demanding environments. Each model provides a high surge current rating to ensure long service life, and includes service assurance features that help alert building management of their current protection status so that managers can take action to maintain continued protection.
Product Features:
- 200,000 Amps per Phase surge current rating to meet new construction bid/spec requirements for facility-wide protection
- Visual LED End of Life Indicator
- Green = 67 to 100% Life
- Yellow = 34 to 66% Life
- Red = 0 to 33% Life
- Surge counter with reset button
- Audible alarm with silence button
- Form C dry contacts for remote monitoring
- Phase loss indication
- EMI/RFI filtering
- Replaceable SPD module
- UL96A Lightning Protection Compliant
- Available in 5 voltage configurations, with up to 10 modes of protection
- UL98 Integral Disconnect Switch included
Applications:
- Service Entrance
- Distribution Panel
Accessories:
- Replacement SPD Module: See chart on page 2
