Product Overview
OVERVIEW:

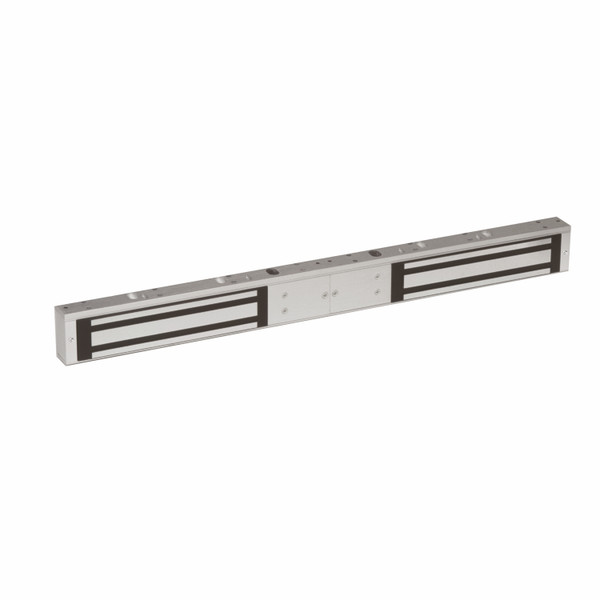

Camden CX-92 Series double door magnetic locks offer the best performance and value. There are 600 and 1,200 Lb. models available with the option of a built-in 'TDS' module, that provides an adjustable timer, lock sensor, door status switch, relay and LED.
FEATURES
- 600 and 1,200 Lb. models are UL and ULC listed
- Weather and vandal resistant constuction proven over thousands of installations
- Compatible with all access/egress systems
- Field selectable 12/24 VDC operation
- On board MOV power surge protection prevents damage to mag lock
- A wide range of mounting brackets and spacers available
- Lifetime warranty
SPECIFICATIONS:
- Voltage: 12/24 VDC
- Current Draw:
- 2 x 500 mA @ 12 VDC
- 2 x 250 mA @ 24 VDC
- Temp Range: 5°F to 122°F (-15°C to 50°C)
- Contact Rating:
- TDS Versions:
- Bond Sensor: 1 A @ 30 VDC
- Door Status Switch: 0.5 A @ 30V AC/DC
- Time Delay: TDS Versions: 0 to 30 Seconds
