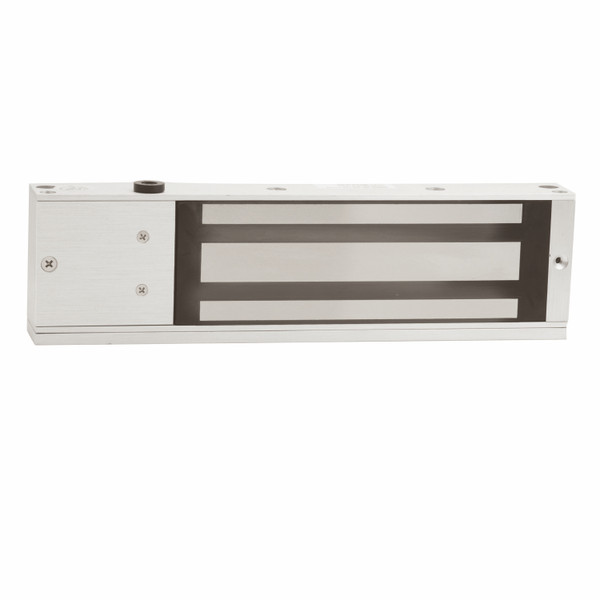

Camden Controls CX-91S-12TDS 1200 Lb. Surface Mount Single Door Magnetic Lock

Write a Review
$260.00
SKU:
CX-91S-12TDS
Shipping:
Calculated at Checkout

Product Overview

OVERVIEW:

Camden CX-90 and CX-91 Series single door magnetic locks offer the best performance and value. There is a range of 300, 600 and 1,200 Lb. models with the option of a built-in 'TDS' module that provide an adjustable timer, lock sensor, door status switch, relay and LED.

Includes adjustable timer, door status switch, lock sensor/relay & LED.

FEATURES

  • 600 and 1,200 Lb. single door models are UL and CUL listed
  • Weather and vandal resistant construction proven over thousands of installations
  • Surface and mortise mount models
  • Compatible with all access/egress systems
  • Field selectable 12/24 VDC operation
  • On board MOV power surge protection prevents damage to mag lock
  • A wide range of mounting brackets and spacers available
  • Lifetime warranty

SPECIFICATIONS:

  • Voltage: 12/24 VDC
  • Current Draw:
    • CX-90 Series:
      • 360 mA @ 12 VDC
      • 180 mA @ 24 VDC
    • CX-91 Series:
      • 500 mA @ 12 VDC
      • 250 mA @ 24 VDC
  • Temp Range: 5°F to 122°F (-15°C to 50°C)
  • Contact Rating:
    • TDS Versions:
      • Bond Sensor: 1 A @ 30 VDC
      • Door Status Switch: 0.5 A @ 30V AC/DC
  • Time Delay: TLS Versions: 0 to 30 Seconds

Cross Reference Guide
