Description
FEATURES

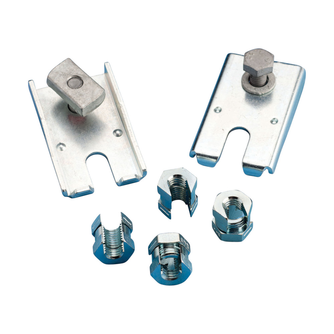

Kit includes 2 strut trapeze attachment plates and 4 SN series nuts
Creates fast install trapeze brackets
PRODUCT ATTRIBUTES
Material: Steel
Finish: Electrogalvanized
Rod Size: 3/8"
Ultimate Static Load: 500 lb
ADDITIONAL PRODUCT DETAILS
Ultimate Static Load is based on one strut trapeze attachment plate supported by two SN Series Nuts.
When evaluating the complete trapeze structure (Strut Trapeze Attachment Kit and strut member), deformation and material
yield of the strut must be taken into consideration. The lesser of the loads should be used as the Ultimate Static Load.
WARNING
nVent products shall be installed and used only as indicated in nVent's product instruction sheets and training materials.
Instruction sheets are available at www.nvent.com and from your nVent customer service representative. Improper
installation, misuse, misapplication or other failure to completely follow nVent's instructions and warnings may cause
product malfunction, property damage, serious bodily injury and death and/or void your warranty
