Description
FEATURES

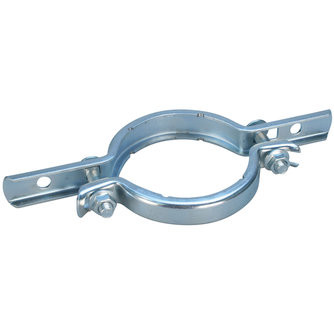

One-piece hinge design comes out of the box ready to install
Lack of loose hardware eliminates dropped or lost components, eliminating potential rework and speeding up installation
Carriage bolts seat into clamp, eliminating the need for multiples tools when tightening
Installs up to 60% faster than standard riser clamps and 45% faster than the industry-leading first generation EZ Riser
Multi-functional clamp can be installed in several approved orientations, simplifying material handling
Integrated second set of bolt holes allow the assembly to easily adapt from a riser clamp into a stand-off support
In spaces where full-sized riser clamps do not fit, integrated score marks allow for easy removal of ears
Retains listing when the ears are removed for close quarters, uniquely making the nVent CADDY EZ Riser capable of a
listing in both installations
Recommended for suspending vertical steel pipe risers
No need to stock and use separate part families for standard and close quarter clamps to offer a full range of listed parts,
reducing inventory by 38%
Conforms with Federal Specification WW-H-171 (Type 8), Manufacturers Standardization Society (MSS) SP-58 (Type 8)
PRODUCT ATTRIBUTES
Material: Steel
Finish: Electrogalvanized
Pipe Size: 2"
Outer Diameter: 2 3/8"
Hole Size: 0.390"
A: 10 1/4"
B: 7"
C: 1"
Static Load: 255 lb
ADDITIONAL PRODUCT DETAILS
Clamp is fitted for steel pipe and should be installed below a coupling or shear lug, with bolts torqued to recommended
value.
Use of a socket or driver is recommended for installation
