Description
FEATURES
Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic

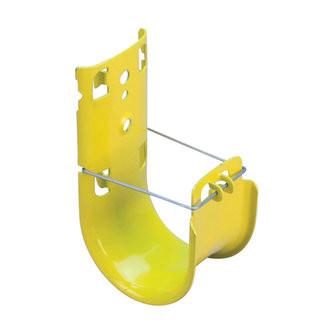

Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
Multiple color options aid in the identification and organization of the pathway application
Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
Compliant with UL® 2043 and suitable for use in air handling (plenum) spaces
Tested according to DIN 4102-12
Complies with EN 50174-2
Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
PRODUCT ATTRIBUTES
Material: Steel
Finish: Pregalvanized;Painted
Color: Yellow
Diameter: 3"
Height: 6.618"
Area: 9.26 in²
Cable Capacity, Cat 5e: 200
Cable Capacity, Cat 6: 150
Cable Capacity, Cat 6A: 80
Static Load: 60 lb
ADDITIONAL PRODUCT DETAILS
Non-continuous supports may not exceed spacing of 5' (1.5 m) per TIA 569-C.9.7 and EN 50174-2.
Cable capacity is calculated based on a 70% fill rate.
