Description
FEATURES
Suspends threaded rod without the need for additional hardware

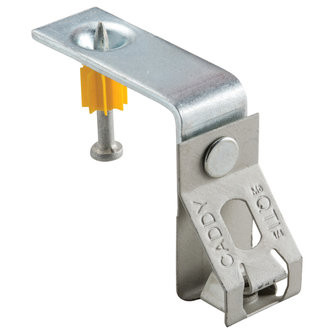

Complete with concrete nail gun insert bracket
Clips onto nozzle of gas or battery-actuated nail guns allowing for hands-off installation at structure or from the floor
using a pole
Longer leg angle bracket for tool clearance
Quickly and easily attaches to concrete, steel or composite metal decking
Easy "push-to-install" design allows installers to simply push the threaded rod through the mounting hole, instantly holding
it in position
Prefabricated assemblies easily lift and lock into place, helping to save time and money
Works with slightly damaged threads and minor burrs on threaded rod ends
Design includes a release mechanism that works with pliers
PRODUCT ATTRIBUTES
Material: Spring Steel;Steel;Nylon
Finish: nVent CADDY Armour;Electrogalvanized
Rod Size: 1/4"
Width: 2.630"
Height: 1.920"
A: 1.830"
B: 1.420"
Static Load: 75 lb
ADDITIONAL PRODUCT DETAILS
Static Load represents the static load of the nail gun insert assembly. Please consult with the nail manufacturer to evaluate
the static load of the nail and type of concrete used for the installation. Maximum load is the lesser of the static load from
the nail manufacturer or the published load for the assembly.
Nail gun insert is compatible with BeA® CN60-688ES, Hilti® BX 3, GX 3, DEWALT® Trak-It C3, SPIT® PULSA 800E, 700, 1000
or equivalent nailers.
