Description
FEATURES

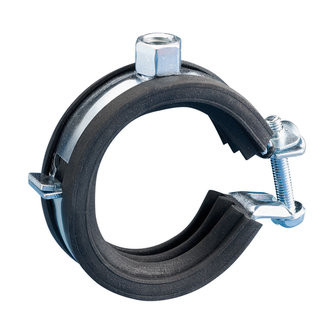

Recommended for the suspension of stationary non-insulated pipe lines
Easy-to-close clamp for steel pipe and copper tube
Unique hinged design eliminates the need to disassemble the clamp prior to installation
Clamp can be closed with one hand, without ever turning a screw
All-steel design of the closing mechanism retains strength even when exposed to heat
Comes with a welded 3/8” cap nut, allowing easy attachment to threaded rod
Combo head bolt works with slotted, hex, or Phillips drivers
Conforms with Manufacturers Standardization Society (MSS) SP-58 (Type 12)
Category II noise reduction according to DIN EN ISO 3822-1
Compliant for sound insulation design according to DIN 4109
Reaction-to-fire classification is "E" in compliance with DIN EN 13501-1
PRODUCT ATTRIBUTES
Material: Steel;EPDM-SBR Rubber
Finish: Electrogalvanized
Temperature: -58 to 230 °F
Outer Diameter: 1.024" – 1.102"
Pipe Size: 3/4"
Copper Tube Size: 1"
Rod Size: 3/8"
B: 29/32"
Static Load: 180 lb
ADDITIONAL PRODUCT DETAILS
Lining is EPDM rubber.
