Product Overview
DESCRIPTION

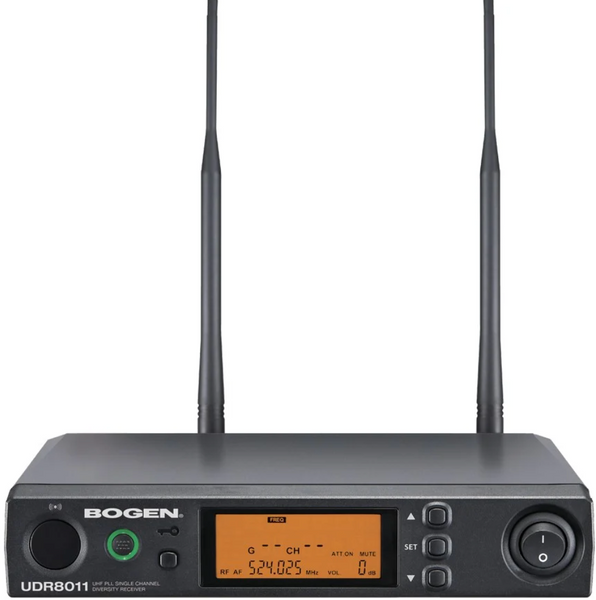

The UDR8011 single-channel UHF receiver is designed as the center of Bogen's UHF8011 wireless system family and is compatible with their UHT8011 handheld or UBP8011 bodypack transmitters (sold separately).
The front panel LCD screen provides at-a-glance verification and control over functions like group, channel, volume, battery level, and more. There's also XLR balanced and 1/4" unbalanced connections for added versatility.
FEATURES
- Frequency Mode: Phase-locked loop (PLL)
- Frequency Range: 470 ~ 960 MHz
- Sync Frequency: Ultrasonic
- Bandwidth: 36 MHz
- Signal/Noise Ratio: > 105 dB(A)
- Total Harmonic Distortion: (Thd)
- Receiving Sensitivity: -95 dBm(S/N > 80 dB)
- Rejection Ratio: > 80 dB
- Frequency Response: 50 Hz ~ 16 kHz ± 2 dB
- Antenna Type: 1/2λ BNC detachable, diversity
- Antenna Power: 12-15 VDC / 100mA
- Display Type: LCD
- Controls: power, set, up/down, button, lock, sync
- Display Functions: Group, channel, frequency, battery level, antenna A/B, muting level, AF indication, RF indication, channel scanning, output level attenuation, volume indication Controls
- Audio Frequency Output Level
- Refí± 22.5 kHz Dev @ 1 kHz Tone
- 1/4” Jack:-10 dBV (unbalanced)
- XLRM Jackí-4 dBV (Line), -24 dBV (MIC) (balanced)
- Audio Output Impedance: 600Ω
- Muting: Noise/Squelch muting
- Output Port
- 1 x balanced XLRM Jack
- 1 x unbalanced 1/4” TS Jack
- Power Supply: 12-15 VDC / 300mA
- Dimensions: 8.35” (W) x 1.5” (H) x 5.6” (L)
