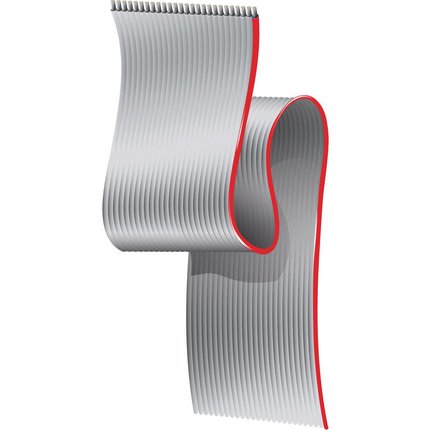

Belden 9L28014 008H300 Flat Gray Ribbon Cable .050" Pitch, 9L280XX Series, #28-14c, PVC Ins - Gray, 300 ft

$652.99
SKU:
9L28014 008H300
Shipping:
Calculated at Checkout
Color:
Gray
Length:
300 ft
Manufacturer Status:
Active
Product Family:
9L28014
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9L28014 008H300 Flat Gray Ribbon Cable .050" Pitch, 9L280XX Series, #28-14c, PVC Ins

Flat Gray Ribbon Cable .050" Pitch, 9L280XX Series, 14 Conductor, 28 AWG (7x36) Tinned Copper, PVC Insulation

Ordering Details

  • Manufacturer Part Number: 9L28014 008H300
  • Color: Gray
  • Length: 300 ft
  • UPC/EAN: 612825221623

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: Internal interconnection, internal wiring of electronic equipment, reliable mass-termination to standard IDC connectors

Construction Details

  • Size: 28; Stranding: 7x36; Material: TC - Tinned Copper
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.010 in (0.25 mm); Color Code: Gray
  • Conductor Spacing Center-Center: .050 +/- .002 in
  • Conductor Spacing Center-Center Outside: .650 +/- .008 in

Electrical Characteristics

  • Nom. Conductor DCR: 68.2 Ohm/1000ft (224 Ohm/km); Nom. Capacitance Cond-to-Cond: 18 pF/ft (59 pF/m); Nom. Characteristic Impedence: 150 Ohm; Nom. Delay: 1.4 ns/ft; Nom. Inductance: 0.29 µH/ft (0.95 µH/m); Nom. Velocity of Prop.: 72%; Max. Current: 1 Amp per Conductor at 20ºC
  • Nom. Capacitance Cond-to-Cond: 10 pF/ft (33 pF/m); Nom. Characteristic Impedence: 105 Ohm; Nom. Inductance: 0.2 µH/ft (0.66 µH/m)
  • Nom. Capacitance Cond-to-Cond: 15 pF/ft (49 pF/m)
  • Element: 10 ft. sample length; Typical Unbalanced NEXT %: 4.8; Typical Unbalanced FEXT %: 7; Typical Cross Talk Pulse Rise Time: 3 ns
  • Element: 10 ft. sample length; Typical Unbalanced NEXT %: 3.5; Typical Unbalanced FEXT %: 4.7; Typical Cross Talk Pulse Rise Time: 5 ns
  • Element: 10 ft. sample length; Typical Unbalanced NEXT %: 3; Typical Unbalanced FEXT %: 3; Typical Cross Talk Pulse Rise Time: 7 ns
  • Frequency [MHz]: 10; Nom. Insertion Loss (Attenuation): 2.8 dB/100ft
  • Frequency [MHz]: 20; Nom. Insertion Loss (Attenuation): 4.8 dB/100ft
  • Frequency [MHz]: 30; Nom. Insertion Loss (Attenuation): 6.5 dB/100ft
  • Frequency [MHz]: 40; Nom. Insertion Loss (Attenuation): 8.3 dB/100ft
  • Frequency [MHz]: 50; Nom. Insertion Loss (Attenuation): 9.8 dB/100ft
  • Frequency [MHz]: 60; Nom. Insertion Loss (Attenuation): 12 dB/100ft
  • Frequency [MHz]: 70; Nom. Insertion Loss (Attenuation): 13 dB/100ft
  • Frequency [MHz]: 80; Nom. Insertion Loss (Attenuation): 14 dB/100ft
  • Frequency [MHz]: 90; Nom. Insertion Loss (Attenuation): 15.8 dB/100ft
  • Frequency [MHz]: 100; Nom. Insertion Loss (Attenuation): 17 dB/100ft
  • High Frequency Table (Nominal/Typical) Notes: GSG=Ground-Signal-Ground Mode
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • Operating: -40°C to +105°C
  • Installation Min.: 2.55 in
  • Bulk Cable Weight: 16 lbs/1000ft (24 kg/km)

Standards and Compliance

  • Environmental Suitability: Indoor
  • Flammability / Reaction to Fire: VW-1
  • AWM Compliance: AWM 2651, I A
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)
