Belden 9998 008500 Portable Cordage, 3 C #16 Str BC, PVC Ins, PVC Jkt, UL Type SJT - Blue

$5,973.99
SKU:
9998 008500
Shipping:
Calculated at Checkout
Color:
Blue
Manufacturer Status:
Active
Product Family:
9998
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9998 008500 Portable Cordage, 3 C #16 Str BC, PVC Ins, PVC Jkt, UL Type SJT

Portable Cordage, 3 Conductor 16AWG (65x34) Bare Copper, PVC Insulation, PVC Outer Jacket, UL Type SJT

Ordering Details

  • Manufacturer Part Number: 9998 008500
  • Color: Blue
  • UPC/EAN: 612825267805
  • Manufacturer Footnote: C G

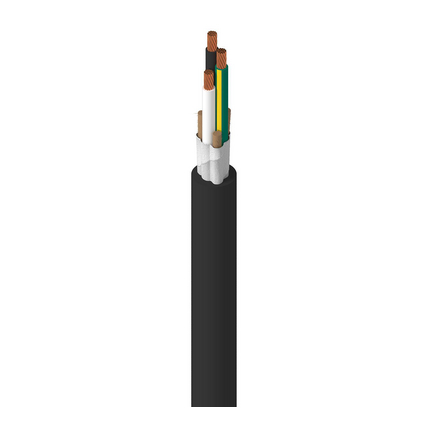

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Construction Details

  • Element: Conductor(s); No. of Elements: 3; Size: 16 AWG; Stranding: 65x34; Material: BC - Bare Copper
  • Element: Conductor(s); Material: PE - Polyethylene; Nom. Thickness: 0.033 in (0.84 mm); Nom. Insulation Diameter: 0.125 in mm; Color Code: Black, White, Green
  • Material: No Shield
  • Separator: Paper Tape; Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.045 in (1.1 mm); Nom. Diameter: 0.475 in
  • Overall Cable Diameter (Nominal): 0.475 in

Electrical Characteristics

  • Nom. Conductor DCR: 4.38 Ohm/1000ft; Max. Current: 19 Amps per Conductor at 25ºC (10 Amps over 50 ft)
  • Max. Current: 10 Amps per Conductor at 25ºC (over 50 ft)
  • UL Voltage Rating: 300 V

Mechanical Characteristics

  • UL Temperature: 75°C; Operating: -25°C to 75°C
  • Stationary Min.: 4.75 in (121 mm); Installation Min.: 4.75 in
  • Max. Pull Tension: 97.5 lbs (44.2 kg)
  • Bulk Cable Weight: 97 lbs/1000ft

Standards and Compliance

  • Flammability / Reaction to Fire: FT2
  • NEC / UL Compliance: Article 400, SJT
  • European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
  • APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

  • Notes: Cabling Paper Separator Tape

History

  • Update and Revision: Revision Number: 0.352 Revision Date: 09-07-2025
  • Footnote: C - CRATE REEL PUT-UP., G - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 100'.
