Description

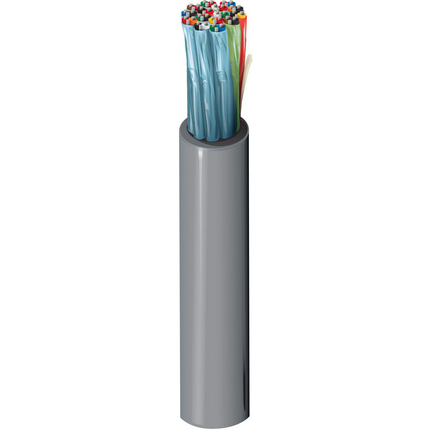

Belden 9993 060100 Audio, Control & Instrument, #24-12pr, PO, Indiv. Foil, PVC Jkt, CM
Audio, Control & Instrument Cable, 24 AWG stranded (7x32) tinned copper conductors, polyethylene insulation, twisted pairs, 12 individually shielded with Beldfoil® (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
Ordering Details
- Manufacturer Part Number: 9993 060100
- Color: Chrome
- UPC/EAN: 612825267768
- Manufacturer Footnote: C
Product Overview
- Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
Construction Details
- Element: Pair(s); No. of Elements: 12; Size: 24; Stranding: 7x32; Material: TC - Tinned Copper
- Material: PE - Polyethylene; Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.046 in (1.2 mm); Color Code: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 24 AWG (7x32) TC
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.428 in (10.9 mm)
Electrical Characteristics
- Nom. Conductor DCR: 28.8 Ohm/1000ft; Nom. Inner Shield DCR: 15.8 Ohm/1000ft (51.8 Ohm/km); Nom. Capacitance Cond-to-Cond: 25 pF/ft (82 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 47 pF/ft (150 pF/m); Nom. Characteristic Impedence: 60 Ohm; Nom. Velocity of Prop.: 66%; Max. Current: 1.1 Amps per Conductor at 25ºC
- UL Voltage Rating: 30 V (AWM 2919), 300 V (CM)
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C To +80°C
- Stationary Min.: 4.28 in (109 mm); Installation Min.: 4.28 in (109 mm)
- Max. Pull Tension: 137.5 lbs (62.37 kg)
- Bulk Cable Weight: 98 lbs/1000ft
Standards and Compliance
- Flammability / Reaction to Fire: UL1685 UL Loading, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CM
- AWM Compliance: AWM 2919
- CEC / C(UL) Compliance: CM
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.460 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
