Belden 9986 0021000 Lead Wire, #28 Str TC, PVC Ins, AWM 1061
Low Temp Plastic Lead Wire, 28AWG (7x36) Tinned Copper, PVC Insulation, AWM 1061 CSA AWM 300V 80C
Ordering Details
- Manufacturer Part Number: 9986 0021000
- Color: Red
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825267362
- Manufacturer Footnote: P
Supplied as one 1,000 ft Reel.

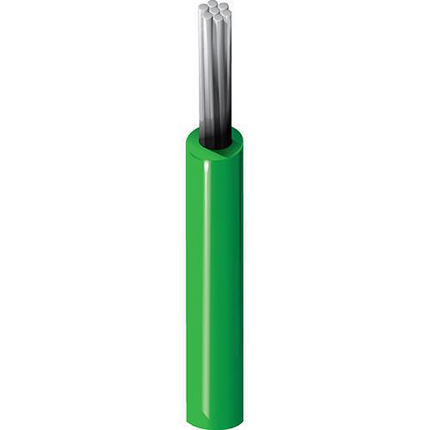

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 28; Stranding: 7x36; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.035 in (0.89 mm)
- Overall Cable Diameter (Nominal): 0.035 in (0.89 mm)
Electrical Characteristics
- Max. Conductor DCR: 6.6 Ohm/1000ft
- Nom. Conductor DCR: 6.6 Ohm/1000ft (22 Ohm/km)
- Nom. Conductor DCR: 6.6 Ohm/1000ft (22 Ohm/km)
- Nom Outer Shield DCR: 6.6 Ohm/km (2.0 Ohm/1000ft)
- Typical Unbalanced FEXT %: 6.7 MHz
- Typical Unbalanced FEXT %: 6.6 MHz
- Nom. Insertion Loss (Attenuation): 6.7 dB/100m
- Nom. Insertion Loss (Attenuation): 6.7 dB/100m
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C To +80°C
- Stationary Min.: 0.14 in (3.6 mm); Installation Min.: 0.14 in (3.6 mm)
- Max. Pull Tension: 2.1 lbs (0.95 kg)
- Bulk Cable Weight: 1 lbs/1000ft
Standards and Compliance
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- AWM Compliance: AWM 1061, CSA AWM I A/B
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.475 Revision Date: 02-20-2026
- Footnote: P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'.
