Description
Belden 9981 009100 Lead Wire, #18 Str TC, PVC Ins, AWM 1061
Low Temp Plastic Lead Wire, 18AWG (19x30) Tinned Copper, PVC Insulation, AWM 1061 CSA AWM 300V 80C
Ordering Details
- Manufacturer Part Number: 9981 009100
- Color: White
- Length: 100 ft
- Put-Up: Reel
- UPC/EAN: 612825266341
Supplied as one 100 ft Reel.

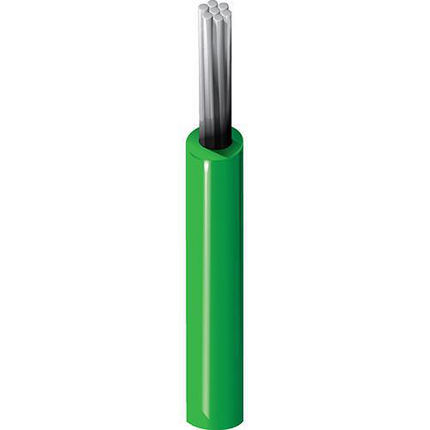

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 18; Stranding: 19x30; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.066 in (1.7 mm)
- Overall Cable Diameter (Nominal): 0.066 in (1.7 mm)
Electrical Characteristics
- Nom. Insertion Loss (Attenuation): 6.5 dB/100m
- Nom. Insertion Loss (Attenuation): 6.5 dB/100m
- Nom. Insertion Loss (Attenuation): 6.5 dB/100m
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C To +80°C
- Stationary Min.: 0.27 in (6.9 mm); Installation Min.: 0.27 in (6.9 mm)
- Max. Pull Tension: 24.7 lbs (11.2 kg)
- Bulk Cable Weight: 6.1 lbs/1000ft
Standards and Compliance
- Flammability / Reaction to Fire: VW-1
- AWM Compliance: AWM 1061, CSA AWM I A/B
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.599 Revision Date: 02-20-2026
- Footnote: P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'.
