Description
Belden 9977 0101000 Lead Wire, #28 Sol TC, PVC Ins, AWM 1061
Low Temp Plastic Lead Wire, 28AWG (Solid) Tinned Copper, PVC Insulation, AWM 1061 CSA AWM 300V 80C
Ordering Details
- Manufacturer Part Number: 9977 0101000
- Color: Black
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825265863
Supplied as one 1,000 ft Reel.

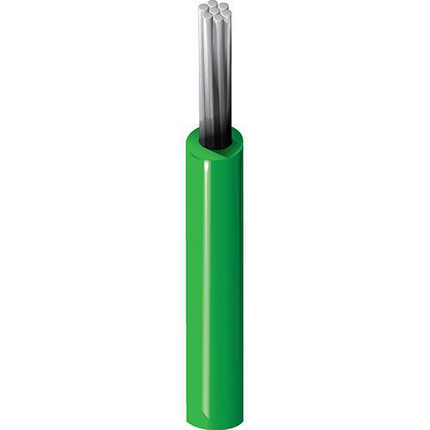

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, wire wrap applications
Construction Details
- Size: 28; Stranding: Solid; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.033 in (0.84 mm)
- Overall Cable Diameter (Nominal): 0.033 in (0.84 mm)
Electrical Characteristics
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 80°C
- Bulk Cable Weight: 0.9 lbs/1000ft (1.3 kg/km)
Standards and Compliance
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- AWM Compliance: AWM 1061, CSA AWM I A/B
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.368 Revision Date: 10-27-2026
