Description
Belden 9975 0051000 Lead Wire, #24 Sol TC, PVC Ins, AWM 1061
Low Temp Plastic Lead Wire, 24AWG (Solid) Tinned Copper, PVC Insulation, AWM 1061 CSA AWM 300V 80C
Ordering Details
- Manufacturer Part Number: 9975 0051000
- Color: Green, Dark
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825265481
- Manufacturer Footnote: P
Supplied as one 1,000 ft Reel.

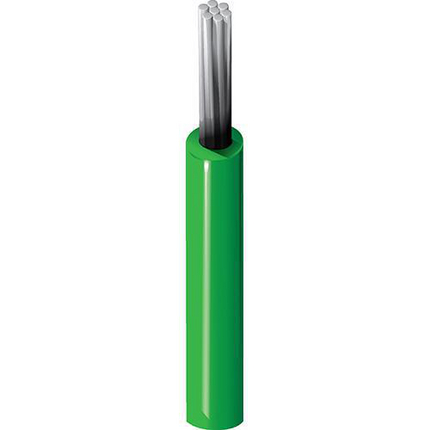

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, wire wrap applications
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 24; Stranding: Solid; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.01 in (0.25 mm); Nom. Insulation Diameter: 0.04 in (1.0 mm)
- Overall Cable Diameter (Nominal): 0.040 in (1.0 mm)
Electrical Characteristics
- Nom. Conductor DCR: 25.2 Ohm/1000ft; Max. Current: Single conductor in free air @ 30ºC: 3.5 A
- UL Voltage Rating: 300 V RMS
Mechanical Characteristics
- UL Temperature: 80°C; Operating: -20°C To +80°C
- Stationary Min.: 0.16 in (4.1 mm); Installation Min.: 0.16 in (4.1 mm)
- Max. Pull Tension: 5.1 lb
- Bulk Cable Weight: 2 lbs/1000ft
Standards and Compliance
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- AWM Compliance: AWM 1061, CSA AWM I A/B
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.482 Revision Date: 02-20-2026
- Footnote: P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION. PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'.
