Description
Belden 9967 009500 Electronic, 3 C #22 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt
Electronic, 3 Conductor 22AWG (19x34) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer Jacket
Ordering Details
- Manufacturer Part Number: 9967 009500
- Color: White
- UPC/EAN: 612825265368

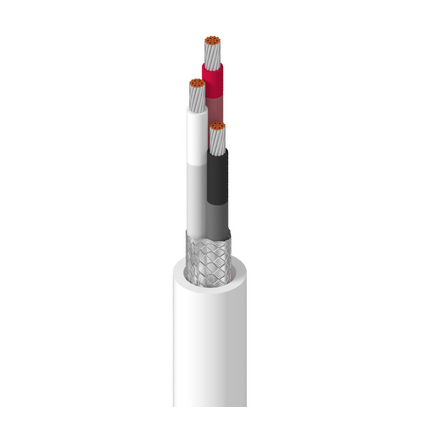

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control
Construction Details
- Element: Conductor(s); No. of Elements: 3; Size: 22; Stranding: 19x34; Material: TC - Tinned Copper
- Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.0125 in (0.318 mm); Nom. Insulation Diameter: 0.056 in (1.4 mm); Color Code: White, Black, Red
- Material: Nylon; Nom. Thickness: 0.003 in (0.076 mm)
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.02 in (0.51 mm); Nom. Diameter: 0.184 in
Electrical Characteristics
- Nom. Conductor DCR: 15.3 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 45 pF/ft (150 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 88 pF/ft (290 pF/m); Nom. Inductance: 0.144 µH/ft (0.472 µH/m); Max. Current: 2.8 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 5.3 Ohm/1000ft (17 Ohm/km)
- Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -20°C To +105°C
- Stationary Min.: 1.84 in (46.7 mm); Installation Min.: 1.84 in
- Max. Pull Tension: 28.5 lbs (12.9 kg)
- Bulk Cable Weight: 24 lbs/1000ft
Standards and Compliance
- CPR Compliance: CPR Euroclass: Eca
- Military Compliance: MIL-W-16878E/17 (insulated conductor)
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.515 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
