Description

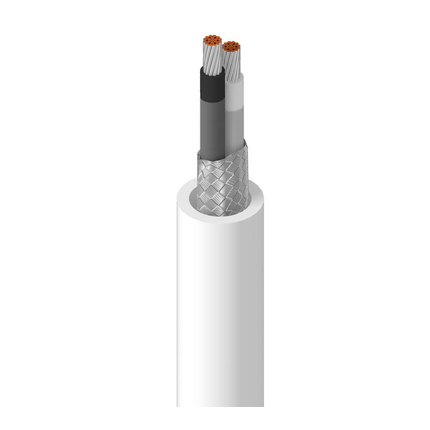

Belden 9966 009100 Electronic, 2 C #22 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt
Electronic, 2 Conductor 22AWG (19x34) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer Jacket
Ordering Details
- Manufacturer Part Number: 9966 009100
- Color: White
- UPC/EAN: 612825265313
Product Overview
- Suitable Applications: MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control
Construction Details
- Element: Conductor(s); No. of Elements: 2; Size: 22; Stranding: 19x34; Material: TC - Tinned Copper
- Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.0125 in (0.318 mm); Nom. Insulation Diameter: 0.056 in (1.4 mm); Color Code: White, Black
- Material: Nylon; Nom. Thickness: 0.003 in (0.076 mm)
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 92%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.02 in (0.51 mm); Nom. Diameter: 0.174 in (4.42 mm)
Electrical Characteristics
- Nom. Conductor DCR: 14.6 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 52 pF/ft (170 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 87 pF/ft (290 pF/m); Nom. Inductance: 0.129 µH/ft (0.423 µH/m); Max. Current: 2.8 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 6.2 Ohm/1000ft (20 Ohm/km)
- Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -20°C To +105°C
- Stationary Min.: 1.74 in (44.2 mm); Installation Min.: 1.74 in (44.2 mm)
- Max. Pull Tension: 19 lbs (8.6 kg)
- Bulk Cable Weight: 19 lbs/1000ft
Standards and Compliance
- Flammability / Reaction to Fire: IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- Military Compliance: MIL-W-16878E/17 (insulated conductor)
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.500 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
