Description

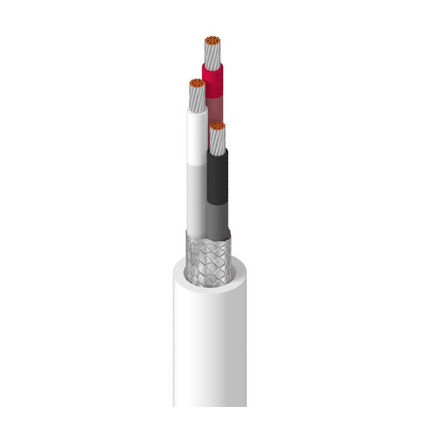

Belden 9963 0091000 Electronic, 3 C #20 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt
Electronic, 3 Conductor 20AWG (19x32) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer Jacket
Ordering Details
- Manufacturer Part Number: 9963 0091000
- Color: White
- UPC/EAN: 612825265252
- Manufacturer Footnote: C
Product Overview
- Suitable Applications: MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control
Construction Details
- Element: Conductor(s); No. of Elements: 3; Size: 20; Stranding: 19x32; Material: TC - Tinned Copper
- Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.0135 in (0.343 mm); Nom. Insulation Diameter: 0.064 in (1.6 mm); Color Code: White, Black, Red
- Material: Nylon; Nom. Thickness: 0.003 in (0.076 mm)
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.025 in (0.64 mm); Nom. Diameter: 0.21 in (5.3 mm)
Electrical Characteristics
- Nom. Conductor DCR: 9.1 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 49 pF/ft (160 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 84 pF/ft (280 pF/m); Nom. Inductance: 0.145 µH/ft (0.476 µH/m); Max. Current: 3.8 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 5.8 Ohm/1000ft (19 Ohm/km)
- Voltage Rating: 600 V
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -20°C To +105°C
- Stationary Min.: 2.1 in (53 mm); Installation Min.: 2.1 in (53 mm)
- Max. Pull Tension: 45 lbs (20 kg)
- Bulk Cable Weight: 29 lbs/1000ft
Standards and Compliance
- Flammability / Reaction to Fire: IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- Military Compliance: MIL-W-16878E/17 (insulated conductor)
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.498 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
