Description
Belden 9954 009100 Electronic, 4 C #16 Str TC, PVC-NYL Ins, OA TC Brd, PVC Jkt
Electronic, 4 Conductor 16AWG (19x29) Tinned Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(90%) Shield, PVC Outer Jacket
Ordering Details
- Manufacturer Part Number: 9954 009100
- Color: White
- UPC/EAN: 612825265160

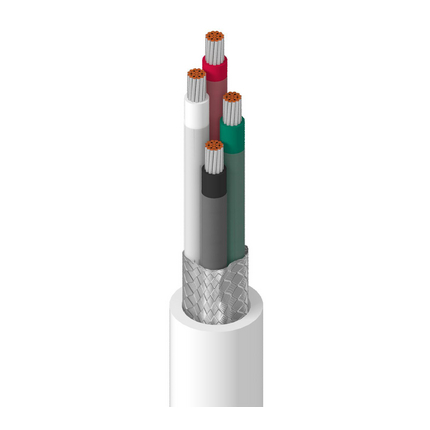

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: MIL-W-16878 (Type B) Spec; up to 600V analog signals ; up to 600V voltage control
Construction Details
- Element: Conductor(s); No. of Elements: 4; Size: 16 AWG; Stranding: 19x29; Material: TC - Tinned Copper
- Element: Conductor(s); Material: PVC/Nylon - Polyvinyl Chloride + Nylon; Nom. Thickness: 0.012 in (0.30 mm); Nom. Insulation Diameter: 0.088 in (2.2 mm); Color Code: White, Black, Red, Green
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.027 in (0.69 mm); Nom. Diameter: 0.291 in (7.39 mm)
- Overall Cable Diameter (Nominal): 0.291 in (7.39 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 4.4 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 49 pF/ft (160 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 94 pF/ft (310 pF/m); Nom. Inductance: 0.108 µH/ft (0.354 µH/m); Max. Current: 6.5 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 4.4 Ohm/1000ft (14 Ohm/km)
- Voltage Rating: 600 V
Mechanical Characteristics
- Operating: -20°C to +105°C
- Stationary Min.: 2.9 in (74 mm); Installation Min.: 2.9 in (74 mm)
- Max. Pull Tension: 200 lbs (91 kg)
- Bulk Cable Weight: 69 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL 1581 (VW-1), VW-1
- Military Compliance: MIL-W-16878E/17 (insulated conductor)
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.513 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
