Description
Belden 9941 060500 RS-232, #22-5c, SR-PVC, Beldfoil+Braid, PVC Jkt, CMG

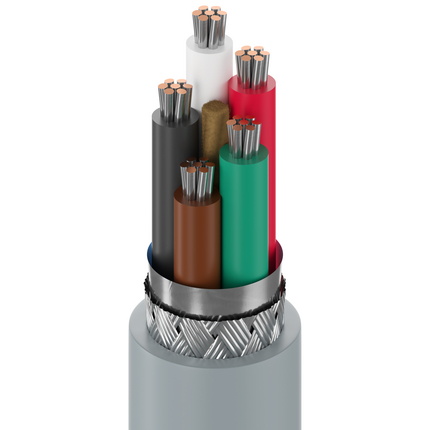

Computer EIA RS-232 Cable, 22 AWG stranded (7x30) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.
Ordering Details
- Manufacturer Part Number: 9941 060500
- Color: Chrome
- UPC/EAN: 612825264736
Product Overview
- Suitable Applications: RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20mA, 0-10V, ...); Low Voltage Digital Control (24V, …); Line Level Audio; Panel Wiring
Construction Details
- Element: Conductor(s); No. of Elements: 5; Size: 22 AWG; Stranding: 7x30; Material: TC - Tinned Copper
- Element: Conductor(s); Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid); Nom. Thickness: 0.011 in (0.28 mm); Nom. Insulation Diameter: 0.050 in (1.3 mm); Color Code: Black, White, Red, Green, Brown
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%
- Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 65%
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.035 in (0.89 mm); Nom. Diameter: 0.230 in (5.84 mm)
- Overall Cable Diameter (Nominal): 0.230 in (5.84 mm)
Electrical Characteristics
- Element: Conductor(s); Nom. Conductor DCR: 14.7 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 37 pF/ft (120 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 67 pF/ft (220 pF/m); Max. Current: 1.8 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 7.1 Ohm/1000ft (23 Ohm/km)
- UL Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464)
Mechanical Characteristics
- UL Temperature: 60°C (UL CMG);80°C (UL AWM 2464); Operating: -30°C to +80°C
- Stationary Min.: 2.8 in (71 mm); Installation Min.: 2.8 in (71 mm)
- Max. Pull Tension: 63 lbs (29 kg)
- Bulk Cable Weight: 35 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca
- NEC / UL Compliance: Article 800, CMG
- AWM Compliance: AWM 2464
- CEC / C(UL) Compliance: CMG
- European Directive Compliance: EU CE Mark
- UK Regulation Compliance: UKCA Mark
History
- Update and Revision: Revision Number: 0.526 Revision Date: 09-07-2025
