Description
Belden 9913F7 B591000 50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Str BC, Foil + 90% TC Braid, PVC Jkt, Flexible
50 Ohm Wireless Transmission Coax, RG-8, 10 AWG (7x18) Bare Copper Conductor , PE Insulation, Foil + 90% Tinned Copper Braid Shield, PVC Jacket, Flexible
Ordering Details
- Manufacturer Part Number: 9913F7 B591000
- Color: Black, Matte
- Length: 1,000 ft
- Put-Up: Reel
- UPC/EAN: 612825261735
- Manufacturer Footnote: C
Supplied as one 1,000 ft Reel.

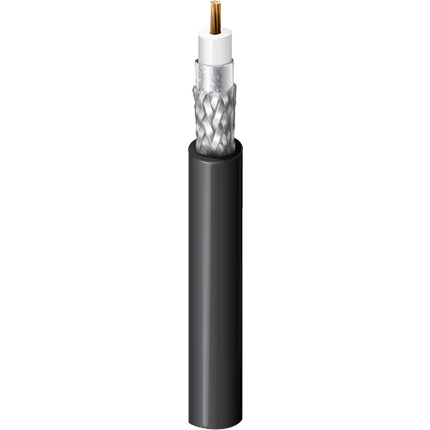

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)
Construction Details
- RG Type: 8
- Size: 10 AWG; Stranding: 7x18; Nom. Diameter: 0.108 in; Material: BC - Bare Copper
- Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.284 in (7.21 mm); Color Code: White
- Layer: 1; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duobond® II; Coverage: 100%
- Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.405 in (10.3 mm)
Electrical Characteristics
- Frequency: 5-2250 MHz; Max. VSWR: 1.43:1
- Frequency: 10 MHz; Nom. Attenuation: 0.6 dB/100ft
- Frequency: 50 MHz; Nom. Attenuation: 1.1 dB/100ft
- Frequency: 100 MHz; Nom. Attenuation: 1.5 dB/100ft
- Frequency: 200 MHz; Nom. Attenuation: 2.0 dB/100ft
- Frequency: 400 MHz; Nom. Attenuation: 3.0 dB/100ft
- Frequency: 700 MHz; Nom. Attenuation: 4.0 dB/100ft
- Frequency: 900 MHz; Nom. Attenuation: 4.7 dB/100ft
- Frequency: 1000 MHz; Nom. Attenuation: 5.0 dB/100ft
- Frequency: 2000 MHz; Nom. Attenuation: 7.5 dB/100ft
- Frequency: 2250 MHz; Nom. Attenuation: 8.0 dB/100ft
- Frequency: 3000 MHz; Nom. Attenuation: 9.8 dB/100ft
- Frequency: 4000 MHz; Nom. Attenuation: 12.1 dB/100ft
- Frequency: 5 MHz; Max. Power Rating: 3,217 W
- Frequency: 10 MHz; Max. Power Rating: 2,681 W
- Frequency: 50 MHz; Max. Power Rating: 1,463 W
- Frequency: 100 MHz; Max. Power Rating: 1,073 W
- Frequency: 200 MHz; Max. Power Rating: 805 W
- Frequency: 400 MHz; Max. Power Rating: 575 W
- Frequency: 700 MHz; Max. Power Rating: 424 W
- Frequency: 1,000 MHz; Max. Power Rating: 350 W
- Frequency: 1,500 MHz; Max. Power Rating: 278 W
- Frequency: 2,000 MHz; Max. Power Rating: 237 W
- Frequency: 3,000 MHz; Max. Power Rating: 188 W
- Frequency: 4,000 MHz; Max. Power Rating: 157 W
- Nom. Conductor DCR: 1.1 Ohm/1000ft (3.6 Ohm/km); Nom. Outer Shield DCR: 1.8 Ohm/1000ft (5.9 Ohm/km); Nom. Capacitance Cond-to-Shield: 22.5 pF/ft (73.8 pF/m); Nom. Characteristic Impedance: 52 Ohm; Nom. Velocity of Prop.: 85%
- Voltage Rating: 600 V
Mechanical Characteristics
- Operating: -40°C to +80°C
- Installation Min.: 4 in (100 mm)
- Max. Pull Tension: 210 lbs (95 kg)
- Bulk Cable Weight: 104 lbs/1000ft (155 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor (Not Riser or Plenum), Indoor, Aerial - Black only, When supported by messenger wire
- Sustainability: CA Prop 65
- CPR Compliance: CPR Euroclass: Eca
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.673 Revision Date: 10-16-2026
- Footnote: C - CRATE REEL PUT-UP.
