Description
Belden 9908 002250 Lead Wire, #8 Str TC, PVC Ins, AWM 1028 AWM 1015
Low Temp Plastic Lead Wire, 8AWG (84x27) Tinned Copper, PVC Insulation, AWM 1028 AWM 1015 CSA TYPE TEW 600V 105C
Ordering Details
- Manufacturer Part Number: 9908 002250
- Color: Red
- Length: 250 ft
- Put-Up: Reel
- UPC/EAN: 612825260608
Supplied as one 250 ft Reel.

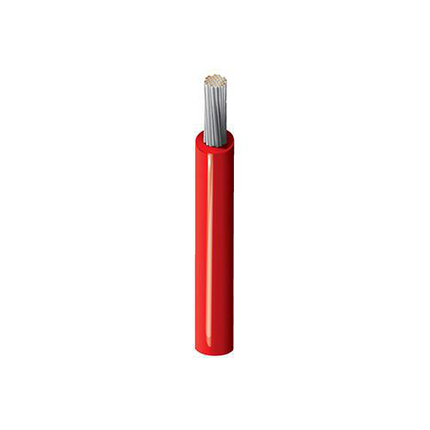

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire
Construction Details
- Element: Conductor(s); No. of Elements: 1; Size: 8 AWG; Stranding: 84x27; Material: TC - Tinned Copper
- Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.0475 in (1.21 mm); Nom. Insulation Diameter: 0.25 in (6.4 mm)
- Overall Cable Diameter (Nominal): 0.25 in (6.4 mm)
Electrical Characteristics
- Nom. Conductor DCR: 6.5 Ohm/1000ft; Max. Current: Single conductor in free air @ 30ºC: 6.5 A
- UL Voltage Rating: 600 V RMS
Mechanical Characteristics
- UL Temperature: 105°C; Operating: -30°C To +105°C
- Stationary Min.: 2.5 in (64 mm); Installation Min.: 2.5 in (64 mm)
- Max. Pull Tension: 45 lbs (20 kg)
- Bulk Cable Weight: 17 lbs/1000ft
Standards and Compliance
- Environmental Suitability: Indoor, Outdoor
- Sustainability: CA Prop 65
- Flammability / Reaction to Fire: VW-1
- NEC / UL Compliance: Article 310, MTW
- AWM Compliance: AWM 1015, AWM 1283, CSA AWM I A/B
- CEC / C(UL) Compliance: TEW
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
History
- Update and Revision: Revision Number: 0.475 Revision Date: 02-20-2026
