Belden 9899 002100 Lead Wire, #18 Str TC, PVC Ins, AWM 1855 - Red, 100 ft Reel

$266.99
SKU:
9899 002100
Shipping:
Calculated at Checkout
Color:
Red
Length:
100 ft
Put-Up:
Reel
Manufacturer Status:
Active
Product Family:
9899
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Belden 9899 002100 Lead Wire, #18 Str TC, PVC Ins, AWM 1855

Low Temp Plastic Lead Wire, 18AWG (65x36) Tinned Copper, PVC Insulation, AWM 1855 5000V 80C

Ordering Details

  • Manufacturer Part Number: 9899 002100
  • Color: Red
  • Length: 100 ft
  • Put-Up: Reel
  • UPC/EAN: 612825260165

Supplied as one 100 ft Reel.

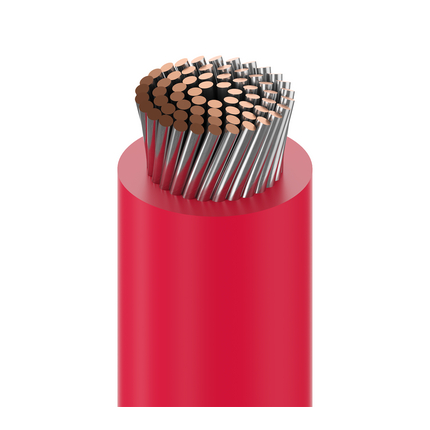

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.

Product Overview

  • Suitable Applications: used as test probe lead for electrical and electronic measuring for test equipment

Construction Details

  • Element: Conductor(s); No. of Elements: 1; Size: 18 AWG; Stranding: 65x36; Material: TC - Tinned Copper
  • Material: PVC - Polyvinyl Chloride; Nom. Thickness: 0.048 in (1.2 mm); Nom. Insulation Diameter: 0.144 in (3.66 mm)
  • Overall Cable Diameter (Nominal): 0.144 in (3.66 mm)

Electrical Characteristics

  • Nom. Conductor DCR: 6.5 Ohm/1000ft; Max. Current: Single conductor in free air @ 30ºC: 6.5 A
  • Typical Unbalanced NEXT %: 6 MHz
  • UL Voltage Rating: 5000 V RMS

Mechanical Characteristics

  • UL Temperature: 80°C; Operating: -50°C To +80°C
  • Stationary Min.: 1.44 in (36.6 mm); Installation Min.: 1.44 in (36.6 mm)
  • Max. Pull Tension: 37 lbs (17 kg)
  • Bulk Cable Weight: 14 lbs/1000ft

Standards and Compliance

  • Environmental Suitability: Outdoor
  • Sustainability: CA Prop 65
  • AWM Compliance: AWM 1855
  • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

  • Update and Revision: Revision Number: 0.484 Revision Date: 02-20-2026
  • Footnote: C - CRATE REEL PUT-UP.

Resources

Belden 9899 Product Information
