Belden 9890 010500 Electronic, 10 C #20 Sol TC, PO Ins, OS, PO Jkt
Electronic, 10 Conductor 20AWG (Solid) Tinned Copper, PO Insulation, Overall Beldfoil® Shield, PO Outer Jacket
Ordering Details
- Manufacturer Part Number: 9890 010500
- Color: Black
- UPC/EAN: 612825260059
- Manufacturer Footnote: C

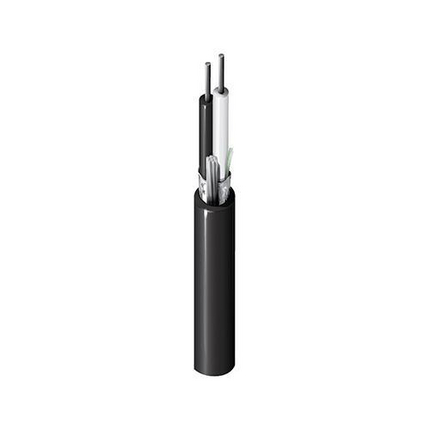

Image is for illustration only. Actual cable color and packaging may vary. Refer to the listed color, length, and put-up for this part number.
Product Overview
- Suitable Applications: direct burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications
Construction Details
- Element: Conductor(s); No. of Elements: 10; Size: 20 AWG; Stranding: Solid; Material: TC - Tinned Copper
- Element: Conductor(s); Material: PP - Polypropylene; Nom. Thickness: 0.013 in (0.33 mm); Nom. Insulation Diameter: 0.058 in (1.5 mm); Color Code: Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple, Gray
- Shield Type: Tape; Material: Bi-Laminate (Alum+Poly); Coverage: 100%; Drainwire Type: 22 AWG (Solid) TC
- Material: PE - Polyethylene; Nom. Thickness: 0.04 in (1.0 mm); Nom. Diameter: 0.31 in
- Outer Jacket1 Table Notes: HDPE
- Overall Cable Diameter (Nominal): 0.31 in
Electrical Characteristics
- Nom. Conductor DCR: 18.1 Ohm/1000ft; Nom. Capacitance Cond-to-Cond: 23 pF/ft (75 pF/m); Nom. Capacitance Cond-to-Other (Conds + Shield): 42 pF/ft (140 pF/m); Max. Current: 2.7 Amps per Conductor at 25ºC
- Nom Outer Shield DCR: 11 Ohm/1000ft (36 Ohm/km)
- Voltage Rating: 350 V
Mechanical Characteristics
- Operating: -40°C To +80°C
- Stationary Min.: 3.1 in (79 mm); Installation Min.: 3.1 in
- Max. Pull Tension: 137.8 lbs (62.51 kg)
- Bulk Cable Weight: 60 lbs/1000ft
Standards and Compliance
- European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- APAC Compliance: China RoHS II (GB/T 26572-2011)
History
- Update and Revision: Revision Number: 0.396 Revision Date: 09-07-2025
- Footnote: C - CRATE REEL PUT-UP.
