Belden 9880 004500 Thicknet 10BASE5, #12 BC, FPO, Duobond IV, PVC Jkt, CM
IEEE 802.3 Ethernet Thicknet 10BASE5, DEC p/n 17-00451-00, 12 AWG solid .086" bare copper conductor, foam polyethylene insulation, Duobond IV® quad shield (100% coverage), PVC jacket.
Ordering Details
- Manufacturer Part Number: 9880 004500
- Color: Yellow
- Length: 500 ft
- Put-Up: Reel
- UPC/EAN: 612825259961
- Manufacturer Footnote: C
Supplied as one 500 ft Reel.
Product Overview
- Suitable Applications: Thick Ethernet

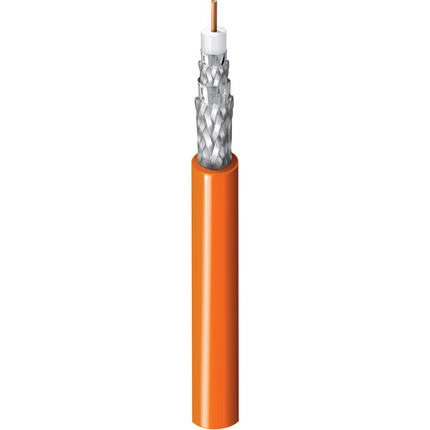

Construction Details
- Element: Coax(es); No. of Elements: 1; Size: 12 AWG; Stranding: Solid; Nom. Diameter: 0.086 in; Material: BC - Bare Copper
- Element: Coax(es); Material: PE - Polyethylene (Foam); Nom. Insulation Diameter: 0.243 in (6.17 mm); Color Code: White
- Element: Coax(es); Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Coverage: 100%
- Element: Coax(es); Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 95%
- Layer: 1; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duofoil®; Coverage: 100%
- Layer: 2; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 94%
- Layer: 3; Outer Shield Type: Tape; Material: Tri-Laminate (Alum+Poly+Alum); Material Trade Name: Duofoil®; Coverage: 100%
- Layer: 4; Outer Shield Type: Braid; Material: Tinned Copper (TC); Coverage: 90%
- Material: PVC - Polyvinyl Chloride; Nom. Diameter: 0.405 in (10.3 mm)
Electrical Characteristics
- Frequency: 1 MHz; Max. Attenuation: 0.19 dB/100ft
- Frequency: 5 MHz; Max. Attenuation: 0.37 dB/100ft
- Frequency: 10 MHz; Max. Attenuation: 0.52 dB/100ft
- Frequency: 50 MHz; Max. Attenuation: 1.2 dB/100ft
- Frequency: 100 MHz; Max. Attenuation: 1.7 dB/100ft
- Frequency: 200 MHz; Max. Attenuation: 2.55 dB/100ft
- Frequency: 400 MHz; Max. Attenuation: 3.9 dB/100ft
- Frequency: 7000 MHz; Max. Attenuation: 5.5 dB/100ft
- Frequency: 900 MHz; Max. Attenuation: 6.5 dB/100ft
- Frequency: 1000 MHz; Max. Attenuation: 6.9 dB/100ft
- Frequency: 1500 MHz; Max. Attenuation: 8.5 dB/100ft
- Frequency: 2000 MHz; Max. Attenuation: 10.1 dB/100ft
- Frequency: 2500 MHz; Max. Attenuation: 11.5 dB/100ft
- Frequency: 3000 MHz; Max. Attenuation: 13 dB/100ft
- Nom. Conductor DCR: 1.42 Ohm/1000ft (4.66 Ohm/km); Nom. Outer Shield DCR: 1.52 Ohm/1000ft (4.99 Ohm/km); Nom. Capacitance Cond-to-Shield: 26 pF/ft (85 pF/m); Nom. Characteristic Impedance: 50 Ohm; Nom. Velocity of Prop.: 78%
- UL Voltage Rating: 300 V RMS, 30 V RMS
- Electrical Characteristics Notes: UL AWM 1478: 30 V RMS
Mechanical Characteristics
- UL Temperature: 60°C; Operating: -40°C To +60°C
- Stationary Min.: 4.05 in (103 mm); Installation Min.: 4.05 in (103 mm)
- Max. Pull Tension: 255 lbs (116 kg)
- Bulk Cable Weight: 122 lbs/1000ft (182 kg/km)
Standards and Compliance
- Environmental Suitability: Indoor, Indoor
- Flammability / Reaction to Fire: UL1685 UL Loading, IEC 60332-1-2
- CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
- NEC / UL Compliance: Article 725, Article 800, CL2, CM
- AWM Compliance: AWM 1478
- CEC / C(UL) Compliance: CM
- IEEE Compliance: IEEE 802.3 10Base5
- European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
- UK Regulation Compliance: UKCA Mark
- APAC Compliance: China RoHS II (GB/T 26572-2011)
- Other Standard Compliance(s): DEC Part No. 17-00451-00
- Plenum Number: 89880
History
- Update and Revision: Revision Number: 0.608 Revision Date: 02-20-2026
- Footnote: C - CRATE REEL PUT-UP.
